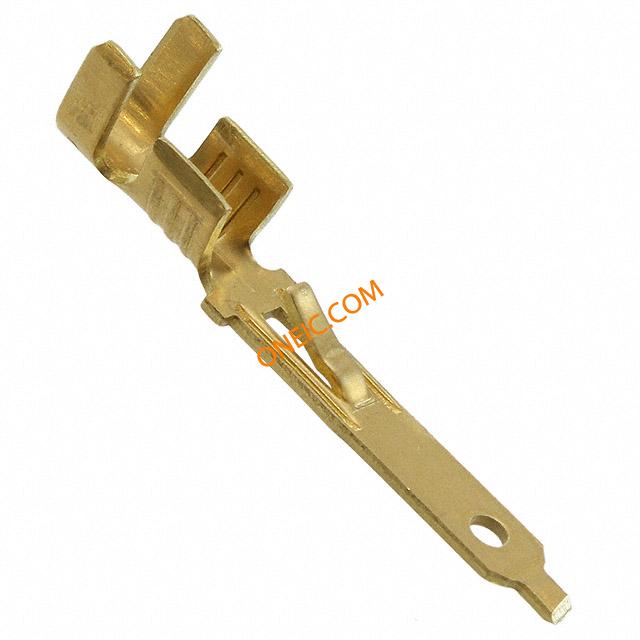

170014-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 16-20AWG M 20.5mm 4.4mm Strip Headers & Wire Housings TAB 20-16 AWG .110 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB FAST 20-16AWG .110 FASTIN-FASTON, Male, 2.79 x 0.51 Quick Disconnect Terminal 16-20AWG M 20.5mm 4.4mm Strip Product Highlights:TabTab Fit = 2.79 x 0.51 mmWire Range = 0.50-1.40² [20-16] mm [AWG]Insulation Diameter = 2.00-3.00 [.079-.118] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TE Connectivity FASTIN-FASTON .110 系列 压接接头端子, 2.79 x 0.51mm FF 110 TAB 20-16AWG BR |
| 分类 |
商业参数
| 其他名称 | A107088CT | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 9,000 | 工厂包装数量 | 9000 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 最大频率 | Single | 开关功能 | 快速断开, 快速断开 |
机械参数
| 表面处理 | None | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 2.79 x 0.51 [.110 x .020] |
| 电缆类型 | Regular Wire | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.472" (12.00mm) | 导线线规 | 20-16 |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.020" (0.51mm) | 端子类型 | Standard |
| 电缆直径 | 1.4mm² | 电缆材料 | Yes |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 封装形式 | Multiple | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 厚度（最大） | 0.51 [0.020] |
| 触头材料 | Brass | 总长度 | FASTIN-FASTON .110 |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | With | 端接样式 | Crimp |
| 适用端子尺寸 | 2 – 3 mm [ .079 – .118 in ] | 接触件尾部长度 | 0.51mm |
| 绝缘直径 | 2.00-3.00 [.079-.118] | 绝缘材料 - 类型 | Yes |
| 总厚度 | .5 mm [ .02 in ] | 焊盘布局尺寸 | 2.79 x 0.51mm |
| 法兰上方插针尺寸 | 2.79 mm [ .11 in ] | 法兰下方引脚尺寸 | .51 mm [ .02 in ] |
| 堆叠高度（配合） | 2.11 [0.083] | 线规或范围 - AWG | 16AWG |
| 线规或范围 - mm² | 0.50-1.40² [20-16] | 触点镀层厚度 - 柱 | 2.79mm |
产品信息
| 连接器性别 | Male | 系列 | 110 |
| 产品子类型 | Contacts | ||
