点击放大查看

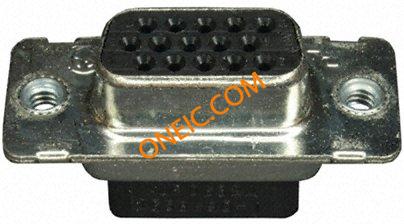

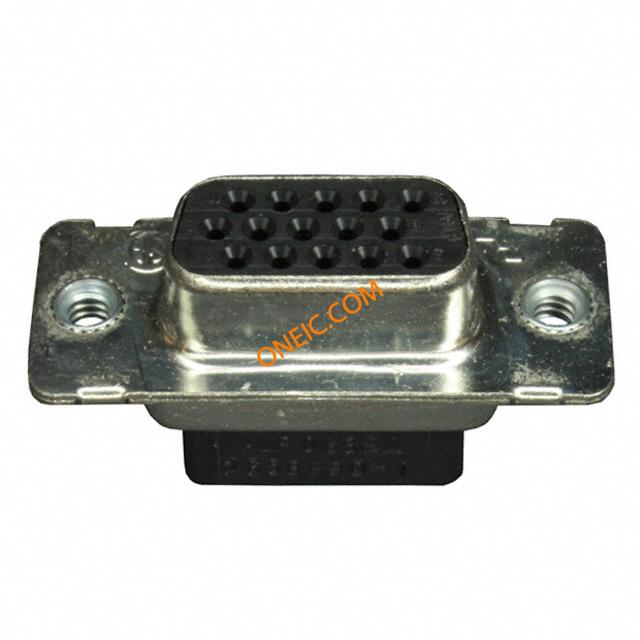

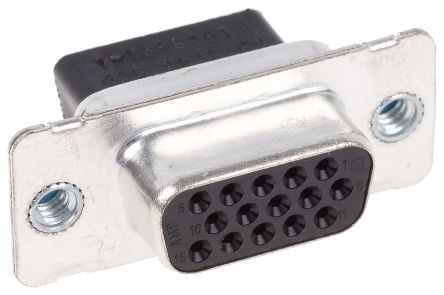

1658690-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 15 POS Crimp ST D-Sub High Density Connectors DSUB E15S CRIMP Standard Cable Connectors CONN RECEPT D-SUB 15POS W/C-NUTS AMPLIMITE HDP22 d-sub cable socket,15way Conn Housing RCP 15 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 15ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;15Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell TE Connectivity AMPLIMITE HDP-22系列 15路 直 压接式 D-sub 连接器, 插座 HDP-22,RCPT,SIZE 1,15 POSN,CLI |
| 分类 |
商业参数
| 其他名称 | 16586901 | 产品类别 | D-Sub High Density Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 800 |
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 防护类型 | UL 94V-0 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 VAC | 连接器阻抗 | 箝紧螺母，4-40 UNC |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 17.9mm |
| 宽度 | 12.54mm | 表面处理 | Zinc |
| 高度 | 12.54 mm | 长度 | 30.81mm |
| 外形尺寸(长x宽) | 1 | 锁定类型 | 带有 |
| 包装方式 | Bulk | 屏蔽 | 是 |
| 壳体颜色 | 黑色 | 外壳尺寸 | 1 |
| 导线线规 | 22 | 方向 | 直 |
| 端接方式 | Crimp | 触点形式 | Signal |
| 触头类型 | Signal | 螺母材料 | Steel |
| 外壳表面处理 | 锡 | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Tin | 端子尺寸 | 22 |
| 行程角度 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 法兰特征 | Board Side (4-40) | 排数 | 3 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, High Density |
| 插入件材料 | Nylon | 锁定特性 | Clinch Nut, 4-40 UNC |
| 屏蔽材料 | 钢 | 壳体材料 | Nylon |
| 总长度 | 30.81 mm | 包装数量 | 800 |
| 主要材料 | D-Subminiature | 接地凹痕 | Without |
| 端接样式 | Crimp | 触点数 | 15 |
| 介电材料 | Polyamide (PA), Nylon, Glass Filled | 位数 | 15 |
| 外壳尺寸-插件 | Front Metal Shell | 外壳镀层厚度 | 200µin (5.08µm) |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 1 (DE, E) High Density |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 等级 | Standard | 连接器性别 | RCP |
| 系列 | HDP-22 (Crimp Snap) | 制造商全称 | HDP-22 |
| 产品子类型 | Connector | 输出配置 | Free Hanging (In-Line) |
环境参数
| 工作温度 | 105°C | ||
