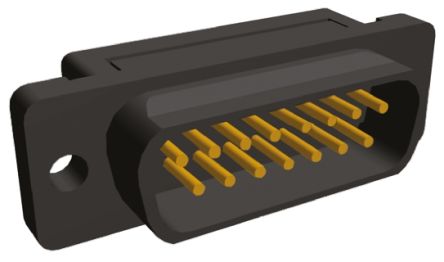

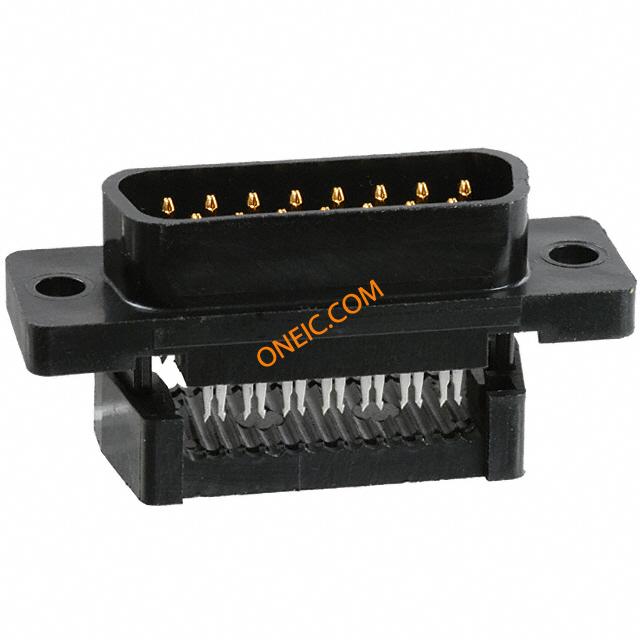

1658615-3

点击放大查看

1658615-3

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 15 POS 2.77mm IDT RA Cable Mount 15 Terminal 1 Port D-Sub Standard Connectors LPP PLUG 15P Standard Cable Connectors CONN D-SUB PLUG 15POS GOLD AMPLIMITE HDF-20 d-sub IDC plug,15 pin Conn D-Subminiature PIN 15 POS 2.77mm IDT RA Cable Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 15PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, IDC, D, PLASTIC, 15WAY Conn;D-Ribbon;CablePlug;15Pos;STR;HDF-20Series;IDC;28-26AWG;PlasticShell TE Connectivity AMPLIMITE HDF-20 系列 2.77mm 节距 15 路 IDC D-Sub 带状电缆连接器, 插头, 热塑性外壳 15 POS HDF PLUG, AP, LEAD FREE
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Rail / Tube
工厂包装数量1

合规参数

RoHSRoHS Compliant海关税号85369010
无铅定义Not relevant for lead free process认证机构:CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE CONNECTIVITY - Amplimite HDF-20 Series额定电压250 V ac
接触电阻:25mohm最大额定电流1.25A
触点额定电流:1.25A

机械参数

颜色Black深度12.59mm
间距2.77 mm宽度18.56mm
长度39.14mm重量0.01
材料（通用）:Black Thermoplastic包装方式Tube
电缆类型Ribbon Cable外壳尺寸2
端接方式IDT触点尺寸20
触头类型Signal第二连接器With
电缆开口747275-3安装类型Cable Mount
外壳镀层Thermoplastic连接器类型Insulation Displacement Crimp (IDC)
接触镀层Gold法兰特征Housing/Shell (Unthreaded)
安装样式Wire排数2
外壳材料（壳体）Plastic连接器样式D-Sub
锁定特性Mounting Holes本体材料:Plastic
外形（宽 x 高）Low触头材料Phosphor Bronze
壳体材料Thermoplastic尺寸/外形39.14 x 18.56 x 12.59mm
接地凹痕With端接样式IDC
触点数15接触件端接:IDC / IDT
绝缘直径0.81 – 0.97 [0.032 – 0.038]位数15
外壳尺寸-插件All Plastic接触镀层厚度Flash
外部壳体材料Thermoplastic线规或范围 - mm²0.08 - 0.15 [28-26]
第一连接器安装类型:Cable外壳尺寸，连接器布局2 (DA, A)

产品信息

备注All plug assemblies are supplied with housing and cover preassembled类型D-Subminiature
等级Standard连接器性别PIN
系列HDF-20产品特性Feed Through
对数747275-3产品子类型Connector

环境参数

工作温度-55°C ~ 105°C

文档与媒体

PDF 文档
1639165.pdf
