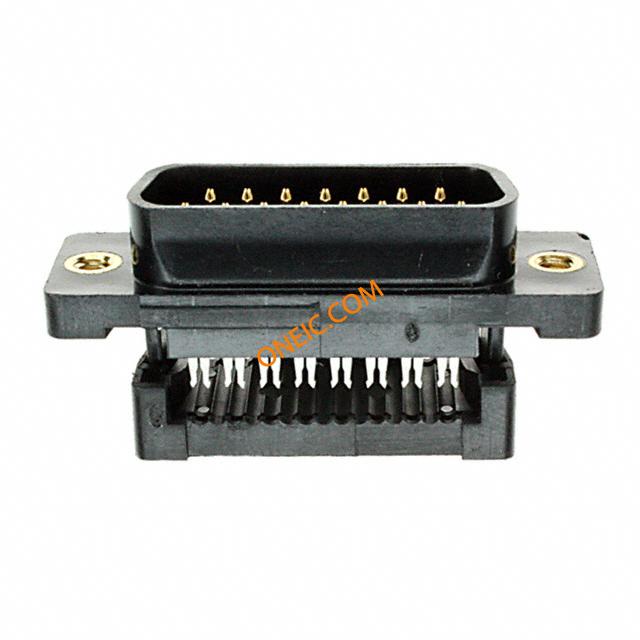

1658611-3

点击放大查看

1658611-3

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature M 15 POS IDT RA Cable Mount 15 Terminal 1 Port D-Sub Standard Connectors 15 POS HDF PLUG AP Standard Cable Connectors CONN DSUB PLUG 15 POS IDC GOLD Conn D-Subminiature M 15 POS IDT RA Cable Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)15 PositionsWithout EnclosureHousing Gender = PlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, PLUG 15 POS HDF PLUG, AP
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Rail / Tube

合规参数

RoHSRoHS Compliant海关税号85369010
抗辐射加固No无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE CONNECTIVITY - Amplimite HDF-20 Series最大额定电流1.25A

机械参数

颜色Black深度12.6 mm
高度18.57 mm重量0
包装方式Tube电缆类型Ribbon Cable
外壳尺寸2端接方式IDT
触点尺寸20触头类型Signal
第二连接器With电缆开口747275-3
安装类型Cable Mount连接器类型Insulation Displacement Crimp (IDC)
接触镀层Gold法兰特征Housing/Shell (4-40)
安装样式Wire排数2
外壳材料（壳体）Plastic连接器样式D-Sub
插入件材料Brass锁定特性Threaded Insert, 4-40 UNC
本体材料:Plastic材料表面处理None
外形（宽 x 高）Low触头材料Phosphor Bronze
壳体材料Thermoplastic总长度39.14 mm
接地凹痕With端接样式IDC
触点数15接触件端接:IDC / IDT
位数15外壳尺寸-插件All Plastic
螺纹/螺钉/孔尺寸Standard接触镀层厚度Flash
外部壳体材料Thermoplastic线规或范围 - AWG0.08 - 0.15 [28-26]
外壳尺寸，连接器布局2 (DA, A)

产品信息

备注All plug assemblies are supplied with housing and cover preassembled类型D-Subminiature
等级Standard连接器性别M
系列HDF-20 (Ribbon Cable)产品特性Feed Through
对数747275-3产品子类型Connector
端口数1 Port

环境参数

工作温度-55°C ~ 105°C

文档与媒体

在线文档
1658611-3?RQPN=1658611-3
PDF 文档
1639165.pdf
