点击放大查看

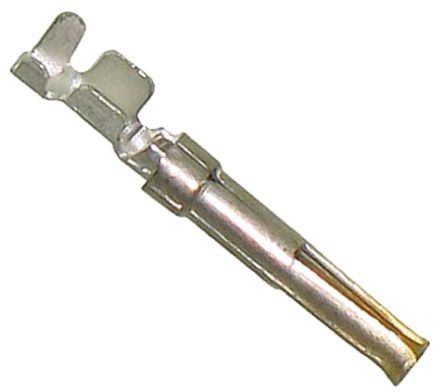

1658543-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Contact SKT 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Loose Piece D-Sub Contacts CRIMP SOCKET 26-22 Standard Cable Connectors CONN SOCKET 22-26AWG GOLD CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.01 - 1.27 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT,SOCKET,HDP-20,PLATED,CRIMP,1.01-1.27MM HDP-20 Series 22-26 AWG Gold Flash Crimp Socket D-Sub Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 插座 D-sub 连接器触点, 镀镍镀金，钯镍合金镀金 触点, 26 → 22 AWG SOCKET CONT DUPL PLT LP HD-20 |
| 分类 |
商业参数
| 产品类别 | D-Sub Contacts | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 输入端 | .04 | 连接器阻抗 | 压接 |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 长度 | 14.1mm | 镀层 | Gold |
| 材料（通用） | Phosphor Bronze | 包装方式 | Bulk |
| 出线方向 | No | 导线线规 | 26-22 |
| 端接方式 | Crimp | 触点形式 | 1Signal |
| 触点尺寸 | 20DF | 触头类型 | 插座 |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 外壳镀层 | Not Required | 端子尺寸 | 20 |
| 连接器类型 | Crimp | 接触镀层 | Gold |
| 安装样式 | Cable | 插入件材料 | 磷青铜 |
| 材料表面处理 | Gold | 触头材料 | Phosphor Bronze |
| 壳体材料 | 压接扣入式 | 包装数量 | Loose Piece |
| 主要材料 | Contact | 端接排数 | 压接 |
| 绝缘高度 | Yes | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 连接器颜色 | 是 |
| 触点数 | 1 POS | 接触件尾部长度 | 20 |
| 接触件端接 | Crimp Snap-In | 绝缘直径 | 1.01 â 1.27 [0.040 â 0.050] |
| 镀层厚度（通用） | Flash | 兼容外壳尺寸（如TM-700等） | AMPLIMITE HDP-20, CPC 连接器 |
| 接触件表面处理 - 配合 | 黄色 | 接触镀层厚度 | Flash |
| 线规或范围 - AWG | 0.15 - 0.40 [26-22] | 线规或范围 - mm² | 26 → 22 AWG |
| 触点材料 - 镀层 | GoldFlashoverNickel | ||
产品信息
| 类型 | Contact | 等级 | Standard |
| 连接器性别 | Not Required | 系列 | HDP-20 |
| 制造商全称 | AMPLIMITEHDP-20 | 产品子类型 | Contact |
| 适用产品/相关产品 | HDP-20,CPCConn. | 适用/相关制造商 | CPC Connectors, AMPLIMITE HDP-20 |
环境参数
| 工作温度 | -55C to 125C | ||
