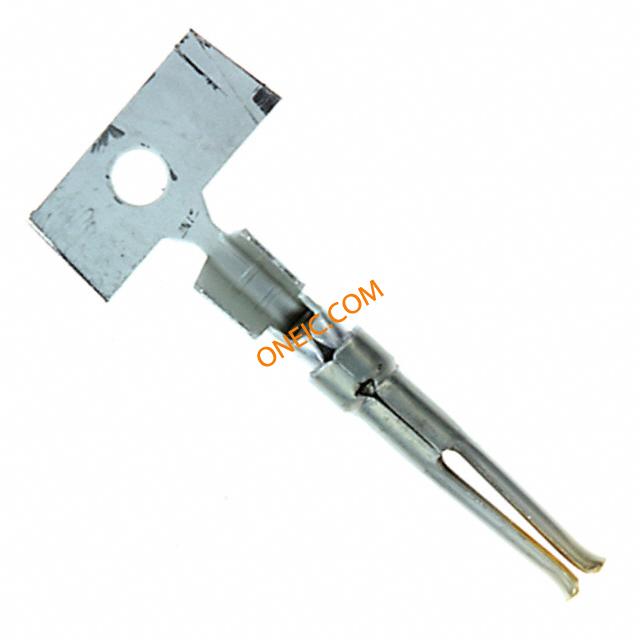

1658542-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts SOCKET CONTACT PLTD Standard Cable Connectors CONN SOCKET 18-22AWG GOLD CRIMP SOCKET CONT DUPL PLT STRIP HD- |
| 分类 |
商业参数
| 其他名称 | A31900CT | 产品类别 | D-Sub Contacts |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 压接 | ||
机械参数
| 镀层 | Gold | 材料（通用） | Phosphor Bronze |
| 包装方式 | Reel | 导线线规 | 22-18 |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Stamped / Formed Contacts | 插针或插孔 | Socket |
| 端子尺寸 | 20 | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold Over Palladium Nickel|Gold Over Nickel | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | 压接扣入式 |
| 包装数量 | Strip | 绝缘高度 | No |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 连接器颜色 | 是 | 接触件端接 | Crimp Snap-In |
| 镀层厚度（通用） | Flash | 接触件表面处理 - 配合 | 绿色 |
| 接触镀层厚度 | .76 | 线规或范围 - AWG | 0.4 - 0.8 [22-18] |
产品信息
| 制造商 | 1.73 | 备注 | Wire insulation diameter is limited by the connector housing cavity and clearan |
| 类型 | Stamped | 等级 | Standard |
| 连接器性别 | SKT | 系列 | HD-20 |
| 产品子类型 | Contact | ||
