点击放大查看

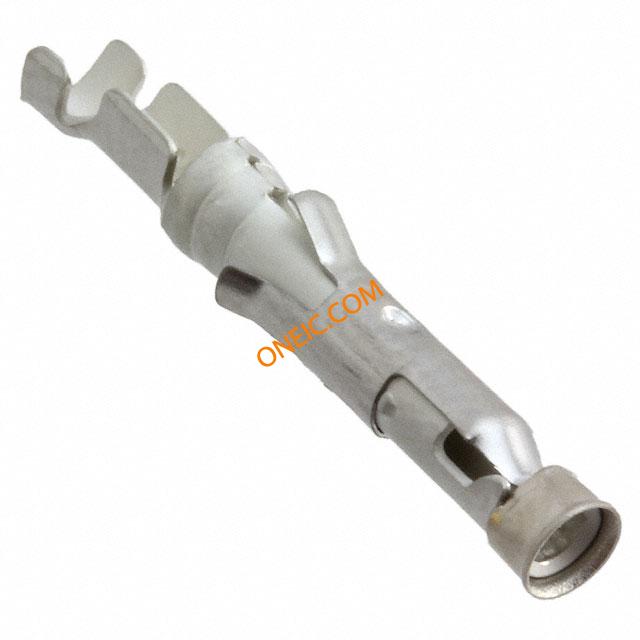

163087-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | 062 SOC.ASS. TYP3+ Multimate CONN SKT .062 20-24AWG TIN CRIMP Type III+ Series Size 16 Female Circular Connector Contact, Crimp,Wire size 24 to 20AWG Pin & Socket Connectors 062 SOC.ASS. TYP3+ 163087-9 Contact SKT Crimp ST Cable Mount Strip Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketTin Contact Mating Area Plating MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.14 - 1.80 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP SOCKET, .062, TIN CONTACT, CRIMP, SOCKET, 24-20AWG, REEL 1.57mmsktcontact24-20AWGtype3Sn TE Connectivity Type III+ 系列 母 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | A111021CT |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 15,000 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
机械参数
| 长度 | 21mm | 重量 | 0.794 |
| 镀层 | Tin | 材料（通用） | Brass |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 20-24 AWG |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 接触镀层 | Tin | 触头材料 | Brass |
| 第一触头极性 | :Socket | 接触件端接 | Crimp |
| 镀层厚度（通用） | 78.7µin (2.00µm) | 线规或范围 - AWG | :24AWG |
产品信息
| 类型 | Stamped | 连接器性别 | Female |
| 系列 | Type III+ | 产品子类型 | Receptacle Housings |
| 适用产品/相关产品 | :- | ||
