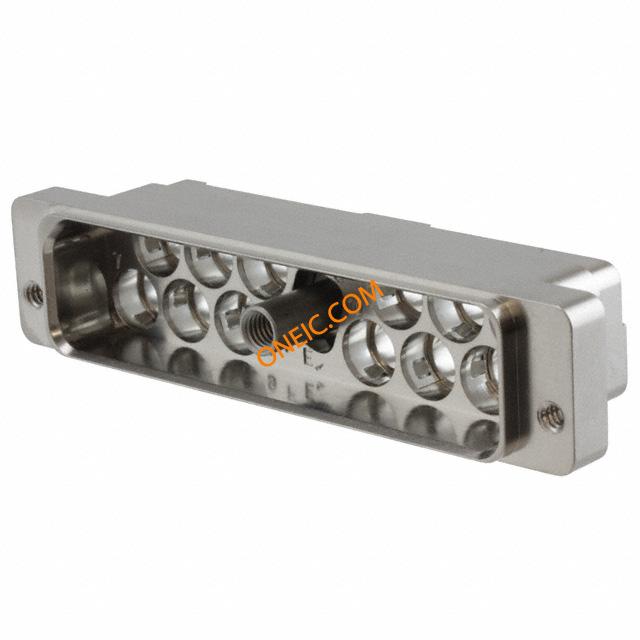

1604798-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Rectangular SKT 12 POS Solder ST Thru-Hole QUADRAX Circular and Rectangular Connectors CONN RCPT 12POS W/COVER Pin & Socket Connectors ASY RCPT PWB MT 12P Conn Rectangular SKT 12 POS Solder ST Thru-Hole Product Highlights:Connector Style = RectangularReceptacleNumber of Positions = 12Contacts Not PreloadedMount Style = PC Board ASY,RCPT,PWB MT,12 POS |
| 分类 |
商业参数
| 交货时间 | 84 Days | 其他名称 | 16047982 |
| 子类别 | Connector Rectangular | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not reviewed for lead free solder process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
电气参数
| 释放范围（时间） | Front | ||
机械参数
| 深度 | 20.06 mm | 间距 | 0.366" (9.30mm) |
| 形状 | 矩形 | 高度 | 24.5 mm |
| 包装方式 | Bulk | 排间距 | 0.366" (9.30mm) |
| 端接方式 | Solder | 触点形式 | No |
| 触头类型 | Size 8 Quadrax | 极化 | A |
| 外壳表面处理 | Nickel | 安装类型 | Through Hole |
| 释放力 | 前部 | 端子尺寸 | 8 |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Threaded | 安装样式 | PC Board |
| 排数 | 2 | 连接器样式 | Rectangular |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 91.44 mm | 端接样式 | Solder |
| 第一触头极性 | A | 触点数 | 12 |
| 接触件端接 | Solder | 位数 | 12 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Rectangular |
| 连接器性别 | RCP | 产品特性 | Jackpost |
| 极性 | Yes | 可密封 | 否 |
| 预装 | 否 | 产品子类型 | Connector |
