点击放大查看

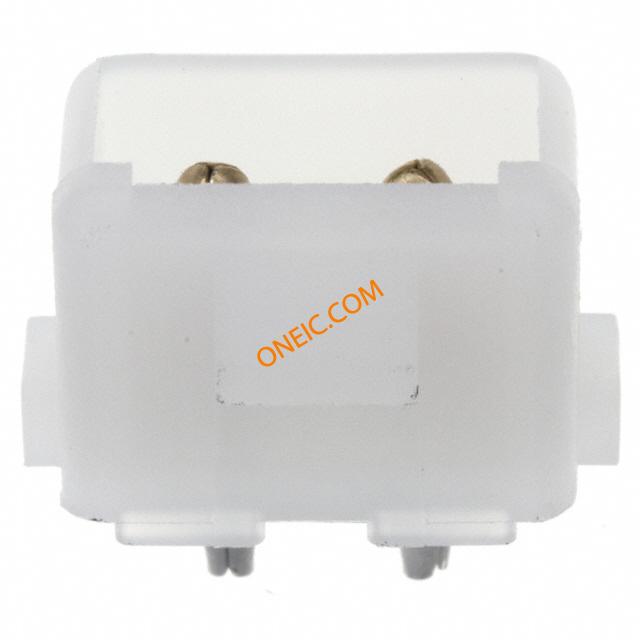

1586530-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER PIN VERT 2POS GOLD MATE-N-LOK 2 Male Straight Heavy Duty Power Connector, Through Hole 13A,250V ac/dc Power to the Board HDR PIN 1X02C VRT V2 Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HDR,RCP,2WAYPINCONTACT TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 2路 直 PCB 针座, 焊接端接, 13A , 通孔 02P CMNL HDR ASSY SHORT LF |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V ac/dc | 最大额定电流 | 13A |
| 最小供电电压 | 250VDC/250VAC | ||
机械参数
| 颜色 | Natural | 间距 | 5.08 mm |
| 高度 | 10.28 mm | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide (PA) |
| 端接样式 | Solder Pin | 第一触头极性 | Pin (Male) |
| 触点数 | 2 | 位数 | 2 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | MATE-N-LOK | 产品子类型 | Headers |
| 端口数 | 1 Port | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 85C | 结工作温度 | 85C |
文档与媒体
