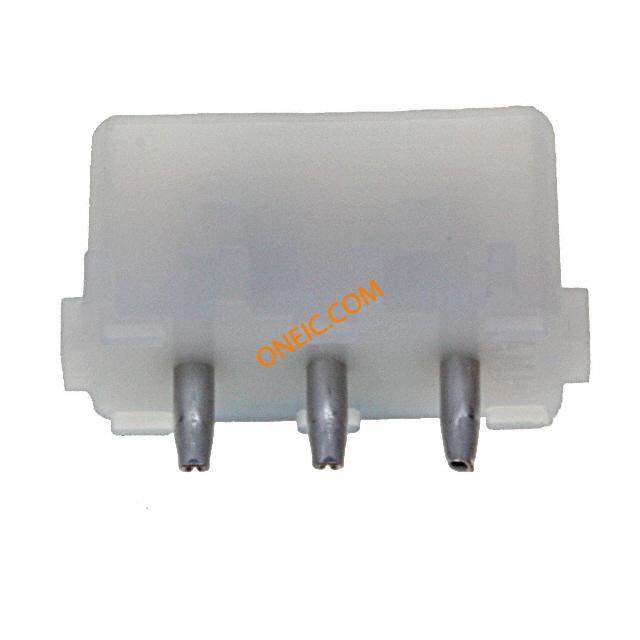

1586514-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER PIN VERT 3POS GOLD Power to the Board 3P HDR ASSY PC NATL Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 03P CMNL HDR ASSY PC NATL LF |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR16455 |
| 标准编号 | CSA, UL | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 13 A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Natural | 间距 | 5.08 mm |
| 高度 | 10.28 mm | 密封型 | Not Sealed |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 安装样式 | Through Hole | 引脚数 | 3 |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 包装数量 | 100 |
| 面板安装类型 | 通孔 - 焊接 | 端接样式 | Solder Pin |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 位数 | 3 | 外壳尺寸-插件 | 插头 |
| 兼容外壳尺寸（如TM-700等） | 插座（插头）外壳 | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 典型触点布局 | 直插式 |
| 端子柱长度 | 3.81 mm [ .149 in ] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 产品子类型 | Headers | 端口数 | 1 Port |
| 应用细节 | Power | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
| 封装热阻 | .062 mm [ 1.57 in ] | ||
