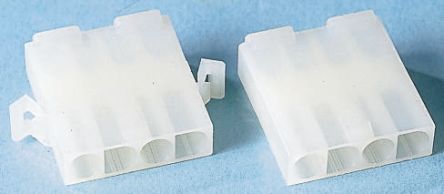

点击放大查看
1586102-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Bag CONN PLUG HOUSING 3POS PANEL MNT Housing 3 way Panel mount Val-u-Lok Pin & Socket Connectors 3P PLUG VAL-U-LOK SR PM V0 4.2mm (.165") Centerline PE Series Connector System 4.2mm (.165") Centerline PE Series Connector System Product Highlights:HousingPlugNumber of Circuits = 3UL 94V-0Number of Rows = SingleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG, PANEL MOUNT, 3WAY PLUG,PANELMOUNT,VAL-U-LOK,3POS,SINGLEROW,UL94V-0 TE Connectivity VAL-U-LOK 系列 1 行 4.2mm 节距 3 路 直 公 电缆安装 压接连接器外壳 3P PLUG VAL-U-LOK SR PM V0 |
| 分类 |
商业参数
| 标准包装规格 | 1,000 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - VAL-U-LOK Series | ||
机械参数
| 深度 | 7.4mm | 间距 | 4.2 mm |
| 宽度 | 23.9mm | 长度 | 13.8mm |
| 重量 | 0.001 | 包装方式 | Bulk |
| 排间距 | 0.165" (4.20mm) | 触头类型 | Male Pin |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | :- | 紧固类型 | Locking Ramp |
| 排数 | 1 | 触头材料 | :- |
| 壳体材料 | Nylon | 主要材料 | InterconnectSystem |
| 连接器颜色 | :White | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | 3 |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 制造商全称 | VAL-U-LOK |
| 适用产品/相关产品 | PCB Connector | ||
