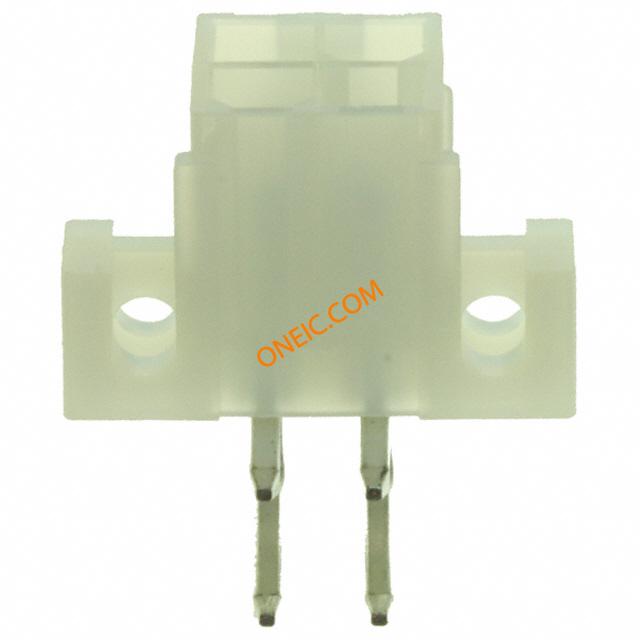

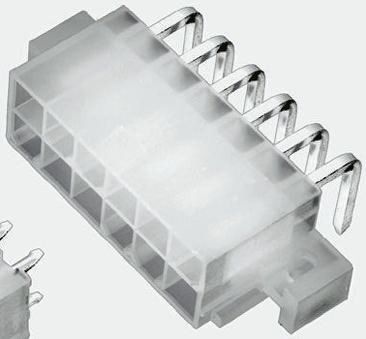

1586043-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port CONN HEADER 4POS R/A W/FLANGE TE Connectivity PE Series 4.2mm Pitch 4 Way Right Angle Heavy Duty Power Connector, Solder Termination, 9A Pin & Socket Connectors RA HDR SCREW MNT 4P Conn Power HDR 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 4UL 94V-2Number of Rows = DualRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,4POS,DUALROW,UL94V-2,SCREWMOUNT TE Connectivity VAL-U-LOK 系列 4.2mm节距 4路 直角 RJ45-Rangierfeld, 焊接端接, 9A , 通孔 4P VAL-U-LOK R/A HDR SCR MT V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | 208567 |
| 标准编号 | CSA, UL | UL阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V ac | 供电电压 | 600 |
| 中心频率 | 带有 | 最大额定电流 | 9A |
机械参数
| 间距 | 4.2 mm | 宽度 | 13 mm [ .5118 in ] |
| 高度 | 9.8 mm [ .384 in ] | 长度 | 9.6 mm [ .38 in ] |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 方向 | 直角 | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 引脚数 | 4 |
| 排数 | 2 | 封装形式 | Plug |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 安装特性 | 安装孔 | 包装数量 | 70 |
| 面板安装类型 | 通孔 - 焊接 | 主要材料 | InterconnectSystem |
| 端接排数 | 焊接 | 端接样式 | 插针 |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 绝缘直径 | 1.2 – 3.2 mm [ .047 – .122 in ] | 位数 | 4 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式 | 端子柱长度 | 3.5 mm [ .138 in ] |
| 接触镀层厚度 | 80 µm [ 2.03 µin ] | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | PE | 覆盖范围 | 覆盖 |
| 制造商全称 | VAL-U-LOK | 产品子类型 | Headers |
| 选择性装载 | No | 应用细节 | Power |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
| 封装热阻 | .063 mm [ 1.6 in ] | ||
