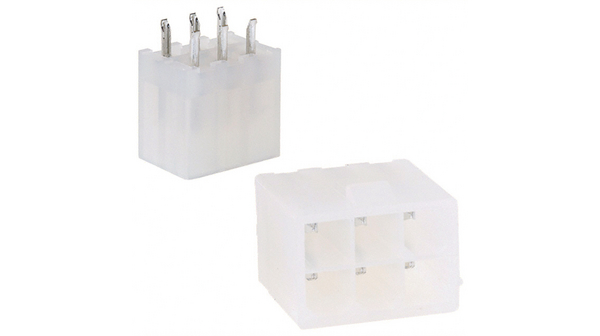

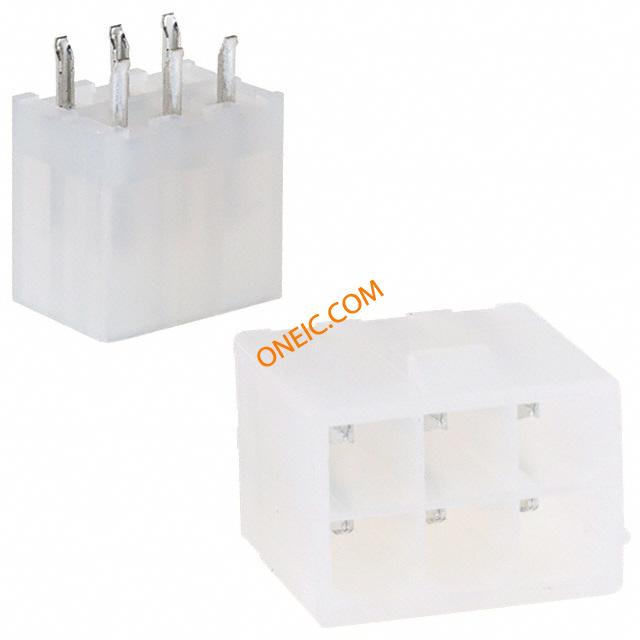

1586037-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray VAL-U-LOK Series Connector System CONN HEADER 6POS VERT W/O PEGS TE Connectivity PE Series 4.2mm Pitch 6 Way Straight Heavy Duty Power Connector, Solder Termination, 9A Pin & Socket Connectors VERT HDR NO PEGS 6P Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray Product Highlights:Pin HeaderNumber of Circuits = 6UL 94V-2Number of Rows = DualVertical Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, VERTICAL, W/DRAIN HOLES, 94V-2 Connector;PinHeader;UL94V-2 Straight header Pitch4.2 mm Poles 2 x 3 VAL-U-LOK, 1586037-6, TE Connectivity TE Connectivity VAL-U-LOK 系列 4.2mm节距 6路 直 RJ45-Rangierfeld, 焊接端接, 9A , 通孔 6P VERT HDR VAL-U-LOK V2 |
| 分类 |
商业参数
| 零件号别名 | 512-2775 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | DFE-230-5 |
| 海关税号 | 85369010 | 无铅定义 | Wave solder capable to 240°C |
| 认证机构 | :CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 量程（°/s） | :TE - VAL-U-LOK Series | 额定电压 | 600 V ac |
| 最大额定电流 | 9A | ||
机械参数
| 间距 | 4.2 mm | 重量 | 0.0125 |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :4.2mm | 引脚长度（针脚） | 0.14" |
| 安装类型 | Through Hole | 行程角度 | Straight |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | Dual | 材料表面处理 | :- |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 0.54" | 主要材料 | WiretoWire&WiretoBoard |
| 插针孔直径 | 0.165" | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :White |
| 触点数 | 6 | 接触件端接 | :Solder |
| 位数 | 6 | 安装孔直径 | 0.055" |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | PE | 产品特性 | Breakaway |
| 制造商全称 | PESeries | 产品子类型 | Pin Header |
| 电路数 | 6 | 加载位置数 | All |
