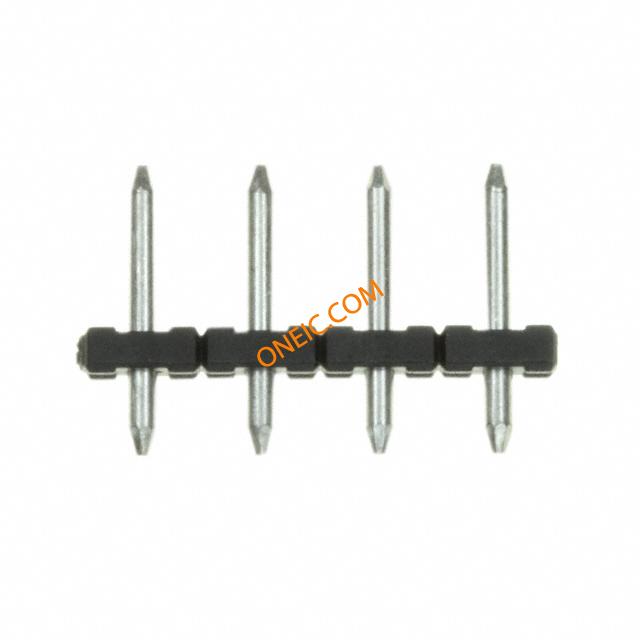

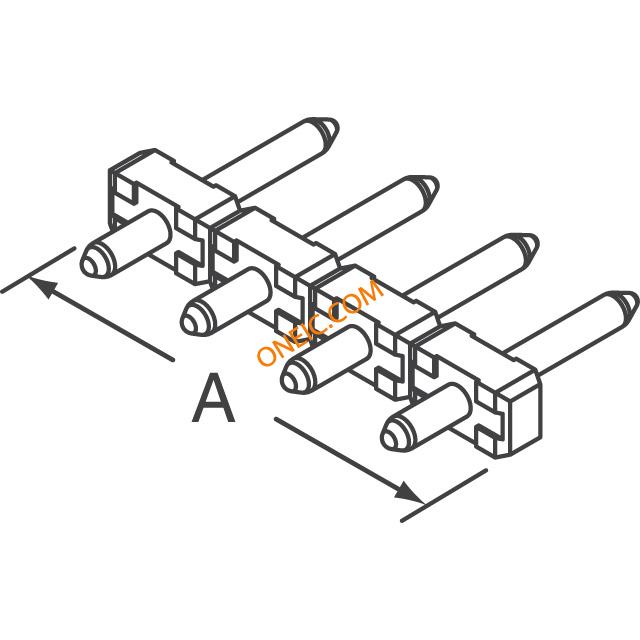

1546931-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 4 POS 5mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 4POS VERT 5MM Pluggable Terminal Blocks 4P UNSHROUD 5.0 HDR Conn Unshrouded Header HDR 4 POS 5mm Solder ST Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 4P UNSHROUD 5.0 HDR,HIGH TEMP |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 12A | 电压 | 300V |
| 额定电压 | 300 VAC | 额定交流电压 | 300 |
| 最大额定电流 | 12 A | 最小供电电压 | 300VAC |
机械参数
| 颜色 | Black | 深度 | 2.8 mm |
| 间距 | 5 mm | 高度 | 9 mm |
| 端部样式 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 端接方式 | Solder |
| 引脚长度（针脚） | 3.5 mm [ .138 in ] | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | 印刷电路板 |
| 接触镀层 | Tin | 法兰特征 | 不带 |
| 安装样式 | Through Hole | 排数 | 1 |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Polyamide (PA) | 总长度 | 20 mm |
| 包装数量 | 150 | 端子宽度 | 否 |
| 端接样式 | Through Hole | 排针方向 | Vertical |
| 引线长度 | 7 mm [ .275 in ] | 触点数 | 4 |
| 位数 | 4 | 接线端子类型 | Header, Male Pins, Unshrouded |
| 螺纹/螺钉/孔尺寸 | 不带 | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 无 | 盖类型 | 否 |
| 层数 | 1 | 每层位数 | 4 |
| 并排堆叠 | 否 | ||
