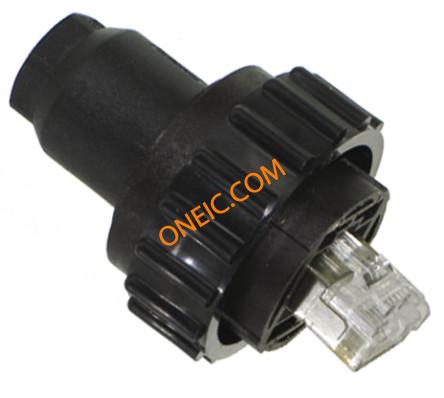

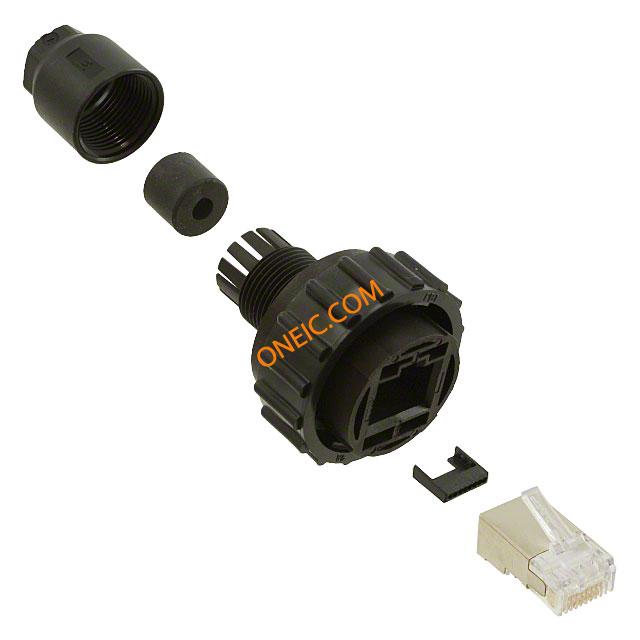

1546907-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 PL 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Cat 5 CPC Series 45 Ethernet CONN MOD PLUG 8P8C SHIELDED Plug Kit, Industrial Ethernet, CPC Modular Connectors / Ethernet Connectors Strand Wire Plug Kit Shielded CONNECTOR, RJ45, PLUG, 8POS, CABLE PlugKit,IndustrialEthernet,CPCSeries45,Shielded,StandardWire CPC PLG ASSY,IND ETHERNET,SHLD,STRD WR |
| 分类 |
商业参数
| 产品 | Industrial Ethernet Connectors | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Translucent - Clear | 长度 | 2.048" (52.02mm) |
| 重量 | 0 | 材料（通用） | UL94V-0Housing |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 导线类型 | Solid | 电缆类型 | Round Cable, Stranded Wires |
| 屏蔽类型 | Yes | 端接方式 | Crimp |
| 安装类型 | Cable Mount | 连接器类型 | :RJ45 |
| 接触镀层 | :- | 安装样式 | Cable |
| 触头材料 | :- | 主要材料 | PlugKit |
| 触点数 | :8 | 接触件端接 | :IDC / IDT |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | RJ-45 | 连接器性别 | PL |
| 系列 | :CPC | 产品特性 | Circular Threaded Coupling |
| 套件类型 | Plug Kit | USOC 编码 | RJ45 |
| 制造商全称 | CPCSeries45 | 产品子类型 | Plug Assembly |
| 性能类别 | Cat 5e | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
| 适用产品/相关产品 | RJ45InsertsCategory5and5eCables | ||
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -55 â +105 | ||
