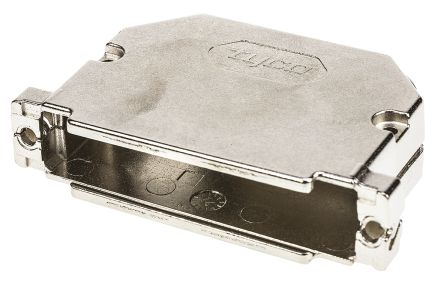

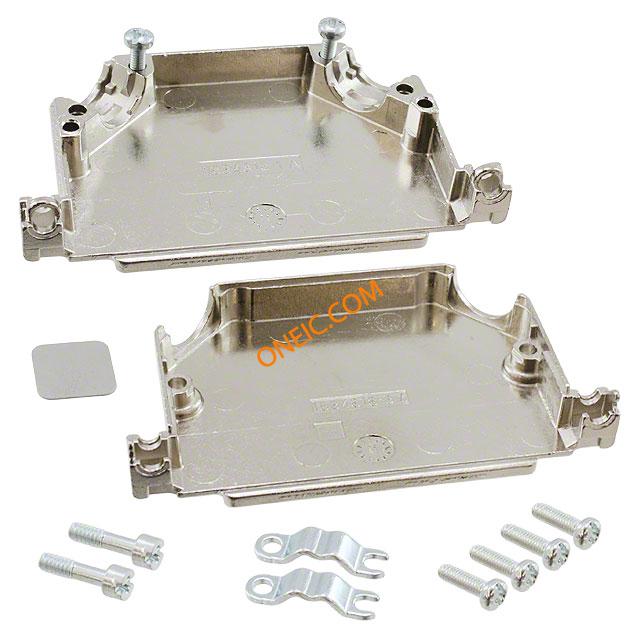

1534811-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Backshell With Cable Clamp 37 POS Box D-Sub Backshells BACKSHELL KIT 37P Cable Clamps CONN HD20 BACKSHELL 37PS W/CABLE 37way dualcable entry diecast back shell Connector Accessories Backshell With Cable Clamp 37 POS Box Product Highlights:Backshell/Cable ClampCable Clamp Type = Single or Dual Cable Entry45° Cable Exit AngleCable Insulation Diameter = 4.80 - 11.00 mmNumber of Positions = 37Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub BACKSHELL, DUAL ENTRY, 37WAY 37waydualcableentrydiecastbackshell TE Connectivity 37 路 斜角 银色 GD-Zn D-sub 连接器底壳 HD20 COVER KIT37POS WITH CABLE CLAMPS |
| 分类 |
商业参数
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 深度 | :15mm | 宽度 | :69.8mm |
| 重量 | 0.07 | 材料（通用） | Metal, Gadolinium - Zinc |
| 屏蔽 | Shielded | 出线方向 | 45° |
| 电缆类型 | Round | 外壳尺寸 | 4 |
| 屏蔽类型 | Yes | 螺纹尺寸 | 4-40 |
| 安装类型 | Angled | 外壳镀层 | None |
| 电缆直径 | 4.8 mm to 11 mm | 电缆端类型 | Variable Entries |
| 电缆材料 | Die Cast | 外壳材料（壳体） | Zinc Die Cast |
| 本体材料 | :Metal | 螺钉头类型 | Phillips |
| 板侧间距 | Without | 壳体材料 | GD-Zn |
| 包装数量 | Individual Kit | 电缆端接方式 | Single or Dual Cable Entry |
| 连接器颜色 | :Silver | 绝缘直径 | 4.80 â 11.00 [0.189 â 0.433] |
| 位数 | 37 | 衬套/护套类型 | Without |
| 电缆对数 | 1 | 后壳材料及镀层 | GadoliniumZinc |
| 控制侧电缆固定器 | With | ||
产品信息
| 类型 | Shell | 系列 | :AMPLIMITE |
| 产品特性 | Assembly Kit, Mating Screws 4-40 | 硬件配件 | Assembly Hardware, Cable Clamp |
| 产品子类型 | Backshell/Cable Clamp | 附件类型 | Two Piece Backshell |
| 射频系列/标准 | 1534811 | ||
