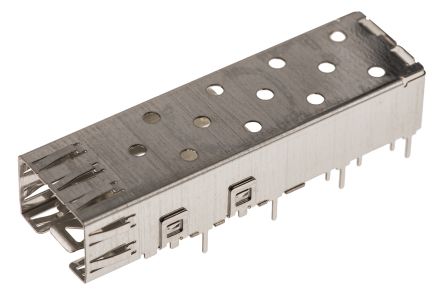

点击放大查看
1489962-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 1 Port Solder SFP Cage Right Angle Copper Alloy Tin Over Nickel Tray I/O Connectors SFP CAGE 1X1 WSDR Pluggable Connectors, Cages, Transceivers & Accessories CONN SFP CAGE SINGLE W/O PIPE SFP single port cage, 20 way, press fit Connector Accessories 1 Port SFP Cage Solder Right Angle Copper Alloy Tin Over Nickel Finish Tray Connector Accessories 1 Port SFP Cage Solder Right Angle Copper Alloy Tin Over Nickel Finish Tray Product Highlights:SFP ApplicationFibre Channel, Gigabit Ethernet, InfiniBand™CageEMI Cage Type = One PieceWithout Light PipeSearch Keywords:high speed, fiber optic, input/output, NIC, Network Interface Cards, PC Cards, 1000BASE-SX, 1000BASE-CX, 1000BASE-LX, OC192/STM-64, G.709, 10 G Fibre Channel, SONET, 10 G Ethernet, 10G Ethernet, Multi-Source Agreement (MSA), FC XAUI, OIF SFI-4 Phase2, pluggable I/O, box to box, everclear, CFP, 100Gb/s ethernet, 10 Gb/s, 16 Gb/s, HSIO CAGE ASSEMBLY, SOLDER PIN, 3.55MM CAGEASSEMBLY,SFP,.140,SINGLE Single Port Single Sided Tin over Nickel Flash SFP Cage TE Connectivity SFP 系列 单端 直角 SFP 笼, 焊接端接, 9.7 x 14 x 48.7mm |
| 分类 |
商业参数
| 产品 | Tools & Accessories | 其他名称 | 14899621 |
| 产品类别 | I/O Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 480 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Tin | 深度 | 48.7 mm |
| 宽度 | 14mm | 高度 | 9.7mm |
| 长度 | 48.7mm | 重量 | 0.0052 |
| 镀层 | Tin over Nickel Flash | 直径 | Not Required mm |
| 材料（通用） | CopperAlloy | 包装方式 | Tray |
| 发光颜色 | Without | 端接方式 | Wave Solder |
| 安装类型 | Right | 连接器类型 | SFP |
| 接触镀层 | Tin over Nickel | 安装样式 | Through Hole |
| 连接器样式 | Cage | 触头材料 | Copper Alloy |
| 壳体材料 | Copper | 总长度 | 14.5 mm |
| 框架材料 | Copper Alloy | 包装数量 | Tray |
| 端接样式 | Solder | 面板尺寸 | 9.7 x 14 x 48.7mm |
| 端子柱长度 | 3.56 [0.140] | ||
产品信息
| 类型 | SFP Cage | 连接器性别 | Female |
| 系列 | SFP | 产品特性 | EMI Shielded |
| 卡类型 | Single | 制造商全称 | AMP |
| 产品子类型 | Cage | 配置 | 1 |
| 附件类型 | Cage Assembly, 1x1 | 端口数 | 1 |
| 射频系列/标准 | 1489962 | 适用产品/相关产品 | :SFP Pluggable Connectors |
