点击放大查看

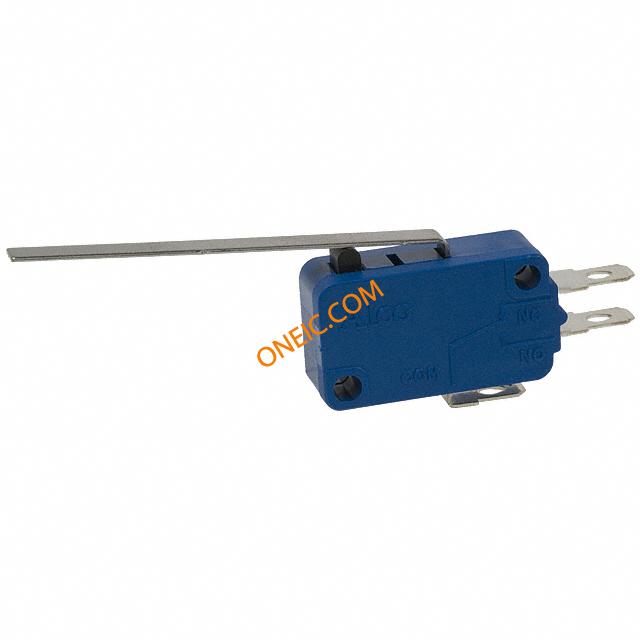

1478605-4

制造商	TE Connectivity Ltd.
描述	Switch Snap Action N.O./N.C. SPDT Long Lever Quick Connect/Solder 16A 0.88N Screw Mount Snap Action Switches SWITCH LEVER SPDT 16A SLDR TERM Alcoswitch Snap Action Switches Actuator Style: Lever, Long Contact Configuration: SPDT Contact Rating: 16A Termination Type: .187 x .020 QC, Solder
分类	开关速动开关标准速动开关

商业参数

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Hand solderable with lead free solder
RoHS/ELV合规状态	RoHS compliant, ELV compliant

电气参数

电路	SPDT	额定电压	125V
开关功能	On-Mom	差动行程	2.40 [0.094]
最大额定电流	16 A	开关功能/额定值	N.O./N.C.
触点额定值 @ 电压	16A

机械参数

包装方式	Bulk	预行程	7.50 [0.295]
超行程	2.60 [0.102]	端接方式	.187 x .020 Quick Connect Terminals, Solder
致动器类型	Lever, Straight	安装类型	Screw Mount
释放力	15 [0.529]	端子类型	Quick Connect/Solder
操作力	0.88 N	端接样式	Solder, Quick Connect - 0.187" (4.7mm)
按钮样式/尺寸	Long Lever	开关驱动电平	SPDT

产品信息

类型	Switches	制造商全称	Alcoswitch
卡标准	Snap-Action Switch	配置	Single Pole - Double Throw
电气寿命	100,000 Cycles	工作高度	15.40 [0.606]

环境参数

机械寿命

10,000,000 Cycles

工作温度

-20°C ~ 130°C

文档与媒体

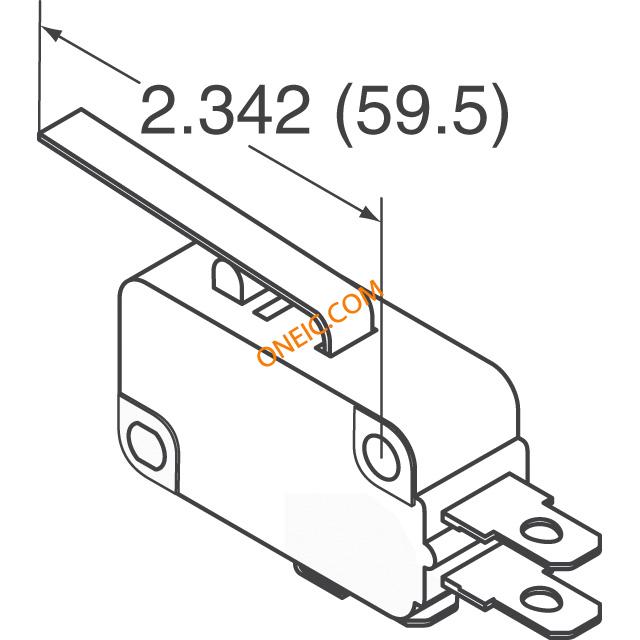

14786xx-4,-5 Microswitches
