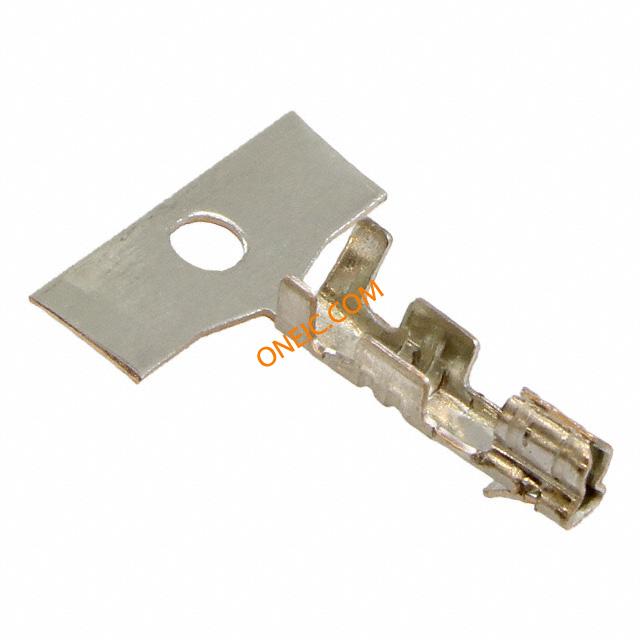

点击放大查看
1470223-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount High Performance Interconnects (HPI) CONN CONTACT 28-22AWG HPI TIN High Speed / Modular Connectors HPI 2.5mm EMIX Term High Performance Interconnects (HPI) Product Highlights:2.50 mm CenterlineContactSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal HPI 2.5mm EMIX Terminal |
| 分类 |
商业参数
| 其他名称 | A110978CT | 标准包装规格 | 10,000 |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not suitable for lead free processing |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 供电电压 | 250 | 最大额定电流 | 3 |
机械参数
| 间距 | 2.5 mm [ .098 in ] | 包装方式 | Tape & Reel (TR) |
| 电缆类型 | 分离式导线 | 导线线规 | 0.08-0.4² [28-22] |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 包装数量 | 60,000 |
| 端接样式 | 插座 | 接触件端接 | Crimp |
| 兼容外壳尺寸（如TM-700等） | 1470222-x | 中心触点材料 | 2.50 [0.098] |
产品信息
| 连接器性别 | SKT | 产品子类型 | Contact |
环境参数
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
