点击放大查看

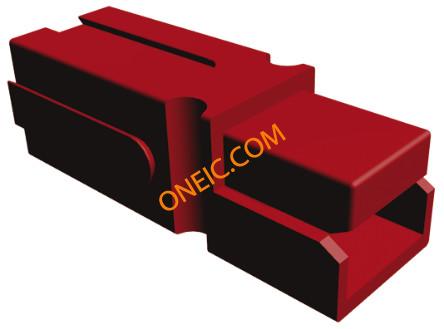

1445715-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Power Connectors CONN HOUSING 1POS RED Housing, crimp, AMP POWER Series 75, red Power to the Board 75A HSG SUBASY RED Conn Power M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Product Highlights:Housing75 AMP SeriesConnector Type = Single-Pole Modular ConnectorCurrent = 75 Amps.Housing Color = RedSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant PLUG AND SOCKET CONNECTOR HOUSING Housing1-PoleModularContact,75A,Red 75A HSG SUBASY RED |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 24 V | 最大额定电流 | 75A |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Red | 深度 | 48 mm |
| 间距 | Not Required mm | 高度 | 17.15 mm |
| 重量 | 0.005 | 包装方式 | Bulk |
| 端接方式 | Crimp | 触头类型 | Non Gendered |
| 安装类型 | Cable Mount | 连接器类型 | Non Gendered |
| 接触镀层 | Silver | 紧固类型 | Spring Retention |
| 安装样式 | Cable | 排数 | 1 |
| 触头材料 | Copper | 壳体材料 | Polycarbonate (PC) |
| 总长度 | 17.15 mm | 触点数 | 1 POS |
| 接触件端接 | Crimp | 位数 | 1 |
| 绝缘材料 - 材质 | Polycarbonate (PC) | 线规或范围 - AWG | 6 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Power |
| 连接器性别 | M | 系列 | :Power Series 75 |
| 产品特性 | Stackable | 产品子类型 | Plug Housings |
| 端口数 | 1 Port | 有铅工艺兼容 | :Yes |
| 适用产品/相关产品 | :AMP Power Series 75 Connectors | ||
环境参数
| 工作温度 | -20C to 105C | 结工作温度 | 105C |
