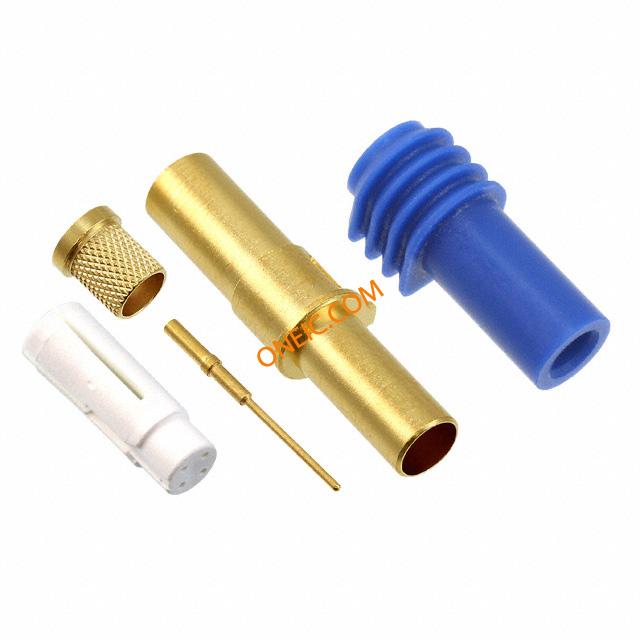

点击放大查看
1445692-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Quadrax Contact PIN 1 POS Crimp ST Cable Mount Rack & Panel Connectors ASY,PIN,QUADRAX ARINC 600/404 Contacts and Accessories CONN PIN 24AWG QUADRAX Conn Quadrax Contact PIN 1 POS Crimp ST Cable Mount Product Highlights:ContactPinCable Type = 24 AWG quad cableTerminate To CableGold over Nickel Contact Mating Area Plating MaterialSearch Keywords:ARINC 664, ARINC 763, MIL-C-38999, BACC65/EPX, M22520/5-01, M22520/5-45, Traffic Alert and Collision Avoidance System, TCAS, military/aerospace, ruggedized fiber optic products, single fiber/duplex, CONTACT, CRIMP, PIN, 24AWG, CRIMP ASY,PIN,QUADRAX |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Connector Rectangular |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 连接器阻抗 | 100 | ||
机械参数
| 长度 | 31.37 [1.235] | 重量 | 0 |
| 镀层 | Gold | 材料（通用） | Copper Alloy |
| 包装方式 | Bulk | 导线类型 | With |
| 电缆类型 | 24 AWG quad cable | 导线线规 | 24 AWG |
| 端接方式 | Crimp | 触点尺寸 | 8 |
| 触头类型 | Quadrax | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | :Contact, Crimp |
| 接触镀层 | Gold over Nickel | 安装样式 | Through Hole |
| 箔压接区域 | Hex | 触头材料 | :Copper Alloy |
| 第一触头极性 | :Pin | 连接器颜色 | Blue |
| 触点数 | 1 | 接触件端接 | Crimp |
| 保险丝座/抽屉 | No | 供应商器件封装 | ARINC 404, ARINC 600 |
| 线规或范围 - AWG | :24AWG | ||
产品信息
| 备注 | With wire seal boot.; Used with Quadrax rectangular connectors. | 类型 | Quadrax Contact |
| 样式 | Rear Release/Rear Remove | 系列 | Quadrax |
| 制造商全称 | AMP | 产品子类型 | Accessories |
| 连接类型 | Cable | ||
