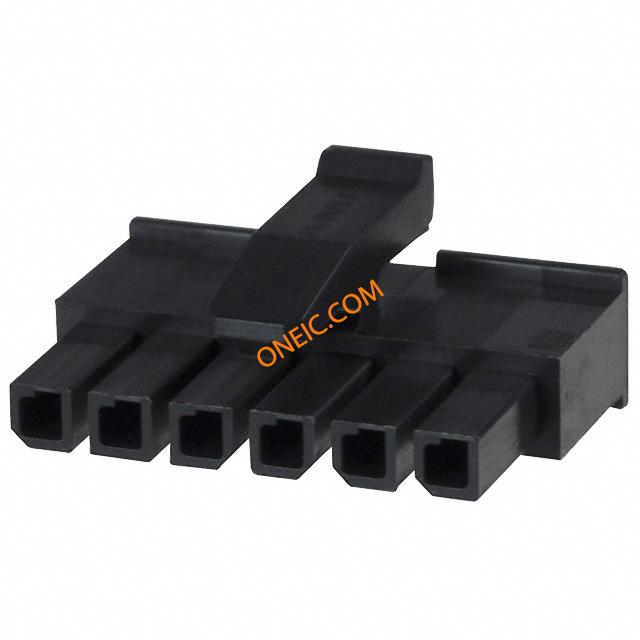

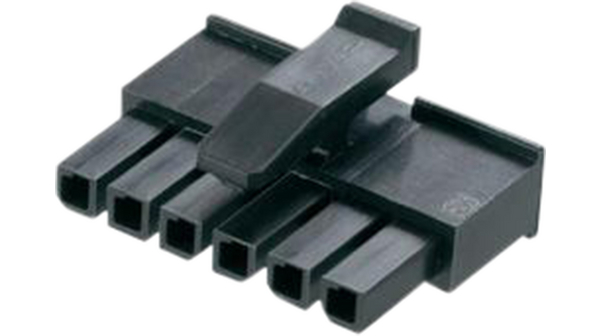

1445022-6

点击放大查看

1445022-6

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 6 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 6POS MATE-N-LOK 6 way 1 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT SINGLE ROW 6P Conn Housing RCP 6 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 6Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 3MM, 6WAY Connector,SoftShell;Nylon;Receptacle;Black;6;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 6 MATE-N-LOK Micro, 1445022-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 6 路 直 母 压接连接器外壳 MICRO MNL RFECEPT HSG SINGLE R
分类
连接器解决方案矩形连接器FPC/FFC矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V最大额定电流5 A
最小供电电压250VAC

机械参数

颜色Black深度14.04 mm
间距3 mm宽度8.7mm
高度8.7 mm长度19mm
重量0.02包装方式Bulk
导线线规(20-24)/(26-30) AWG触头类型Female Socket
外壳颜色Black安装类型Straight
连接器类型Receptacle紧固类型Latch Lock
安装样式Wire排数1
封装形式Receptacle锁定特性:Latch
本体材料:Nylon (Polyamide)触头材料Phosphor Bronze
壳体材料Nylon总长度19 mm
端接样式Crimp第一触头极性Socket (Female)
触点数6接触件端接Crimp
位数6中心触点材料3.00 [0.118]

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列MATE-N-LOK
产品子类型Housing适用产品/相关产品Centerline Soft Shell Pin & Socket Connector

环境参数

工作温度-40C to 105C

文档与媒体

PDF 文档
1650928.pdf
在线文档
1445022-6?RQPN=1445022-6

相关型号

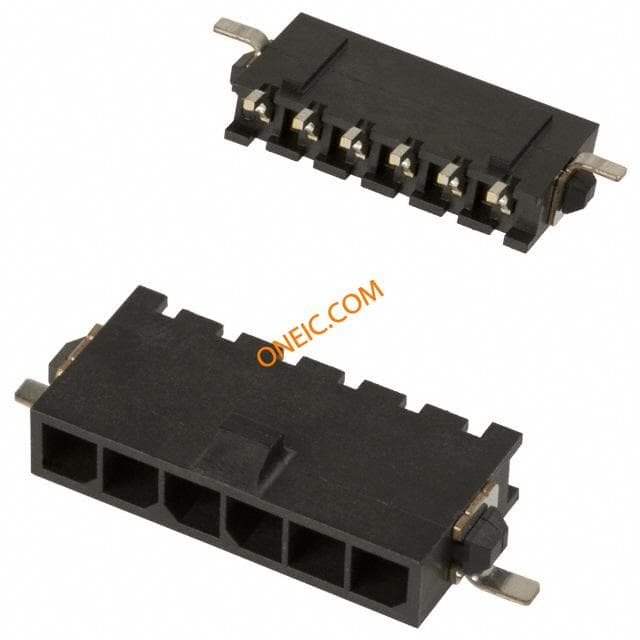

2-1445100-6

2-1445100-6

te connectivity / amp

Conn Power HDR 6 POS 3mm Solder RA SMD 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 6POS R/A GOLD SMD Pin & Socket Connectors HDR ASSY 6 POS R/A SINGLE ROW 30 AU MICRO MNL HDR ASSY S/ROW LF MICRO MNL HDR ASSY S/ROW LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥6.4056
详情
1445093-6

1445093-6

te connectivity / amp

Conn Power HDR 6 POS 3mm Solder ST Thru-Hole 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 6POS GOLD T/H Pin & Socket Connectors HDR VERT 6 POS 30 AU SINGLE ROW 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 6Number of Rows = SingleVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥4.7665
详情

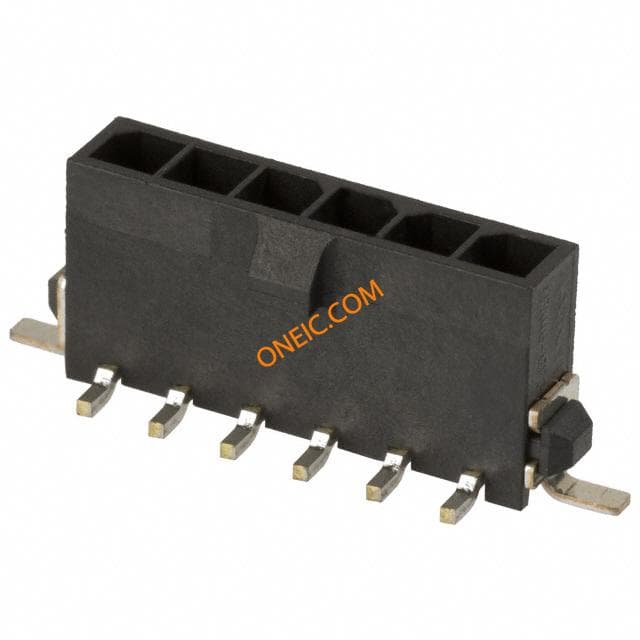

2-1445053-6

2-1445053-6

te connectivity / amp

Conn Power HDR 6 POS 3mm Solder ST SMD 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 6POS TIN SMD Pin & Socket Connectors HDR VERT 6 POS TIN SINGLE ROW 2-1445053-6 MICRO MNL HDR ASSY S/ROW LF MICRO MNL HDR ASSY S/ROW LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥4.4826
详情
1445049-6

1445049-6

te connectivity / amp

Conn Housing PL 6 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN PLUG 3MM 6POS MATE-N-LOK 6 way 1 row cable plug Mate-N-Lok Pin & Socket Connectors PLUG SINGLE F.H. 6P free hanging Conn Housing PL 6 POS 3mm ST Product Highlights:HousingHousing Type = PlugNumber of Positions = 6Number of Rows = SingleMount Type = Free HangingSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector SoftShellHousing;Nylon;Black;0.118in.;FreeHanging;Plug;6;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 6 MATE-N-LOK Micro, 1445049-6, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 6 路 直 公 压接连接器外壳 FREE HANG SNGL ROW HSG 6 POS

¥1.1975
详情
2-1445088-6

2-1445088-6

te connectivity / amp

Conn Power HDR 6 POS 3mm Solder RA Thru-Hole 6 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 6POS R/A T/H 15GOLD Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW AU LF MICRO MNL HDR ASSY S/ROW AU LF MICRO MNL HDR ASSY S/ROW AU LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥4.2024
详情

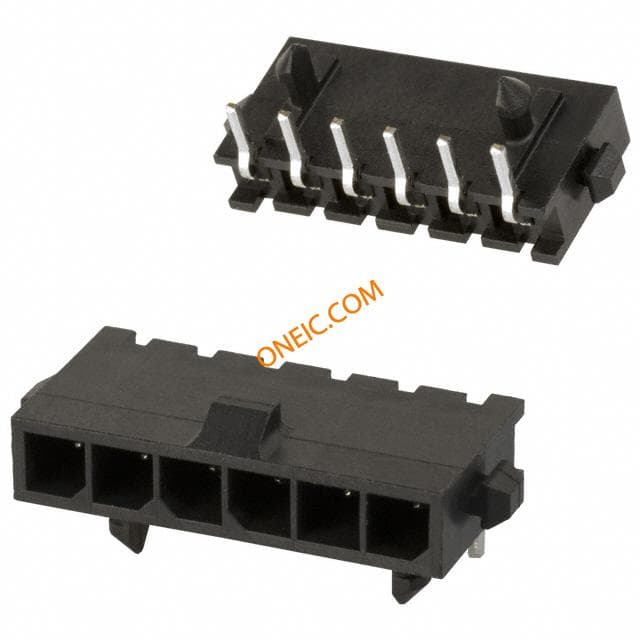

2-1445055-6
