点击放大查看
1394462-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | PHOTOVOLT STEVERB1P SOLARLOK Connector System CONN FEMALE PLUS COUPLER 12AWG Through Hole Solar Connector Power,Rated At 25A Solar Connectors / Photovoltaic Connectors CABLE COUPLER FEMALE PLUS KEYED 4.0 Conn Female Cable Coupler 12AWG Conn Female Cable Coupler 12AWG Product Highlights:ConnectorConnector Type = Cable CouplerFemaleKeyedKeying = PlusSearch Keywords:IEC 61215, 61646, Protection Class II, Photovoltaic Interconnection System, high voltage, high current, photovoltaic, solar, ground clip, solar panels, solar panel, ground PV panels, photovoltaics, solar cable, solar cable coupler, Photovoltaic Interconnection System, Decentralized junction box, residential combiner box, 5-string Combiner Box SOCKET, SOLARLOK, 4MM, POS CONNECTOR,PHOTOVOLTAIC,SOLARLOK,CABLECOUPLER,1POS.,FEMALE,PLUS,12AWG Connector: DC mains; Features: "+" marking; female; 4mm2 TE Connectivity 通孔 功率 太阳能面板接头 , 额定25A |
| 分类 |
商业参数
| 产品 | Cable Couplers | 交货时间 | 59 Days |
| 子类别 | Connector Photovoltaic | 产品类别 | Solar Connectors / Photovoltaic Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 最大额定电流 | 25A | 连接器类型 - 电压输入 | "+" marking |
机械参数
| 间距 | Not Required mm | 重量 | 0.02 |
| 涂层 | Plus Keyed | 导线线规 | 12 |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Cable Coupler |
| 接触镀层 | Silver Plate | 安装样式 | Wire |
| 触头材料 | Copper Zinc | 壳体材料 | PPO |
| 包装数量 | 100 | 主要材料 | Photovoltaic |
| 端接样式 | Quick Connect | 连接器颜色 | :Black |
| 触点数 | 1 POS | 接触件端接 | :Crimp |
| 线规或范围 - mm² | 4.0² [12] | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 100 | 类型 | Female Coupler |
| 连接器性别 | Female | 系列 | :SOLARLOK |
| 产品特性 | 12 AWG | 功能 | Solarlok connector |
| 钥匙类型 | Plus | 极性 | Positive |
| 编码、键控 | Yes | 制造商全称 | SOLARLOK |
| 产品子类型 | Connector | 端口数 | 1 Port |
| 单元数量 | 1 | 应用细节 | for photovoltaic modules |
环境参数
| 密封等级 | IP67 | 工作温度 | +105°C |
| 结工作温度 | 105C | ||
文档与媒体
相关型号
1-1579004-2
te connectivity / amp
Complete Tool For SOLARLOK With Long Handle Assembly Photovoltaic Connectors HAND CRIMP 4.0 - 6.0 TOOL CRIMP 10-12AWG SOLARLOK Hand tool 4.0+6.0mm Crimpers HAND CRIMP 4.0 - 6.0 CRIMP TOOL, SOLARLOK, 4MM-6MM Crimper;12-10AWG;Rectangular;SOLARLOKContacts;7-1579001-9Die Vario Crimp Head and Locator Cable Assembly Hand Crimping Tool Crimping tool, 1-1579004-2, TE Connectivity TE Connectivity Modular Mini CERTI-LOK 系列 Solar Cable Connector 压接工具 , 适用于6 → 4 AWG 线规格 CSV10 CRIMPING HANDTOOL SOLARLOK 4-6
1394461-3
te connectivity / amp
Conn Power Coupler M 1 POS ST Cable Mount 1 Terminal 1 Port SOLARLOK Connector System CONN MALE PLUS COUPLER 12AWG Cable Mount Solar Connector Power Coupler,Rated At 25A Solar Connectors / Photovoltaic Connectors CABLE COUPLER MALE PLUS KEYED 4.0 Conn Male Cable Coupler 12AWG Conn Male Cable Coupler 12AWG Product Highlights:ConnectorConnector Type = Cable CouplerMaleKeyedKeying = PlusSearch Keywords:IEC 61215, 61646, Protection Class II, Photovoltaic Interconnection System, high voltage, high current, photovoltaic, solar, ground clip, solar panels, solar panel, ground PV panels, photovoltaics, solar cable, solar cable coupler, Photovoltaic Interconnection System, Decentralized junction box, residential combiner box, 5-string Combiner Box PLUG, SOLARLOK, 4MM, POS CONNECTOR,PHOTOVOLTAIC,SOLARLOK,CABLECOUPLER,1POS.,MALE,PLUS,12AWG Connector: DC mains; Features: "+" marking; male; 4mm2 TE Connectivity 电缆安装 功率耦合器 太阳能面板接头 , 额定25A PHOTOVOLT CONN PIN PLUS 4 sq mm 12AWG
6-1394461-2
te connectivity / amp
Conn Power Coupler M 1 POS ST Cable Mount 1 Terminal 1 Port SOLARLOK Connector System CONN MALE COUPLER UNKEYED 12AWG Solar Connectors / Photovoltaic Connectors CABLE COUPLER MALE NOT KEYED 4.0 Conn Male Cable Coupler 12AWG Conn Male Cable Coupler 12AWG Product Highlights:ConnectorConnector Type = Cable CouplerMaleNot KeyedWire Size = 4.0² [12] mm² [AWG]Search Keywords:IEC 61215, 61646, Protection Class II, Photovoltaic Interconnection System, high voltage, high current, photovoltaic, solar, ground clip, solar panels, solar panel, ground PV panels, photovoltaics, solar cable, solar cable coupler, Photovoltaic Interconnection System, Decentralized junction box, residential combiner box, 5-string Combiner Box PLUG, SOLARLOK, 4MM, NEUTRAL CONNECTOR,PHOTOVOLTAIC,SOLARLOK,CABLECOUPLER,1POS.,MALE,12AWG Solarlok 12 AWG Neutral Keyed Male Cable Coupler Connector PHOTOVOLT CONN PIN NEUTRAL 4 s
1740210-3
te connectivity / amp
Connector Accessories Photovoltaic Connectors PNL MT RCPT 4MMsq PLASTIC NUT PLUS CONN MALE 12AWG INVERTED CONVER Solar Connectors / Photovoltaic Connectors PNL MT RCPT 4MMsq PLASTIC NUT PLUS PLUG & SOCKET CONNECTOR, PLUG, 1POS DCCONVERTERRECEPTACLE,W/FLATSEALANDPLASTICNUT,12AWG,4.0MM2,KEYING=PL

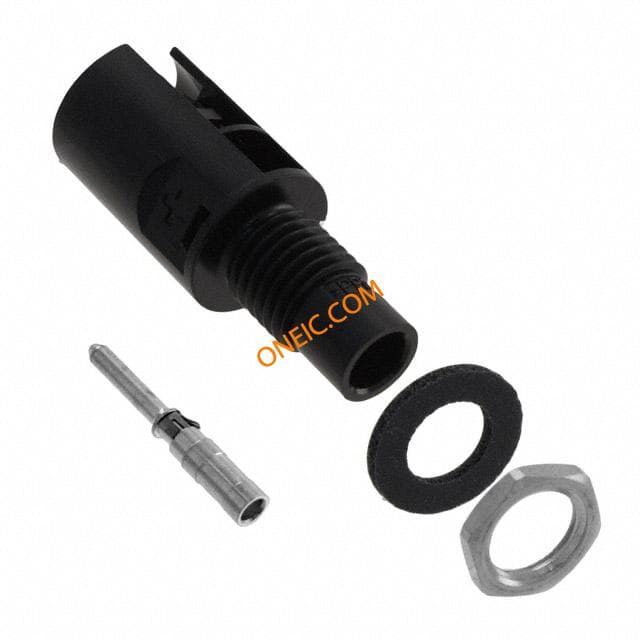

2120382-3
