点击放大查看

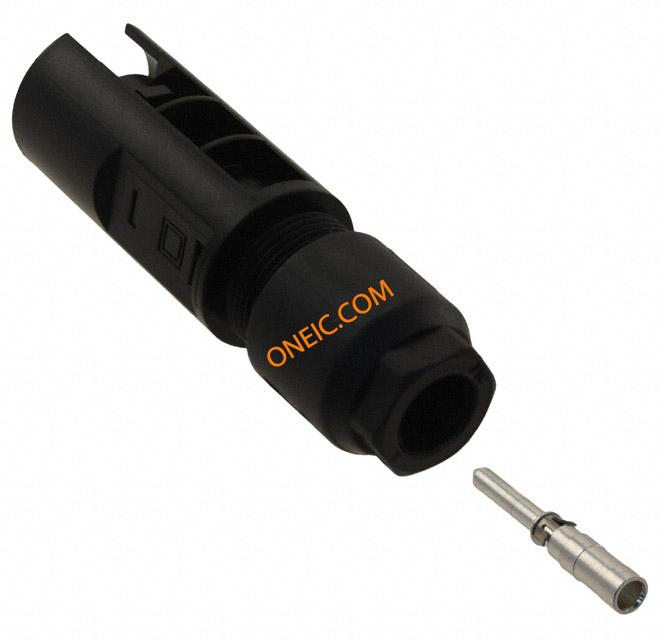

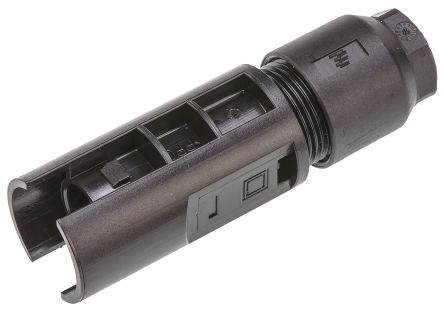

1394461-4

制造商	TE Connectivity Ltd.
描述	Conn Power M 1 POS SOLARLOK Connector System CONN MALE MINUS COUPLER 12AWG Male Cable Mount Solar Connector Coupler,Cable CSA 4mm2,Rated At 25A,1000V dc Solar Connectors / Photovoltaic Connectors CABLE COUPLER MALE MINUS KEYED 4.0 Conn Male Cable Coupler 12AWG Conn Male Cable Coupler 12AWG Product Highlights:ConnectorConnector Type = Cable CouplerMaleKeyedKeying = MinusSearch Keywords:IEC 61215, 61646, Protection Class II, Photovoltaic Interconnection System, high voltage, high current, photovoltaic, solar, ground clip, solar panels, solar panel, ground PV panels, photovoltaics, solar cable, solar cable coupler, Photovoltaic Interconnection System, Decentralized junction box, residential combiner box, 5-string Combiner Box PLUG, SOLARLOK, 4MM, NEG Connector Typ CONNECTOR,PHOTOVOLTAIC,SOLARLOK,CABLECOUPLER,1POS.,MALE,MINUS,12AWG Connector: DC mains; Features: "-" marking; male; 4mm2 TE Connectivity 电缆安装管接头太阳能面板接头 , 截面积4mm²电缆, 额定25A, 1000 V 直流 PHOTOVOLT CONN PIN MINUS 4 sq mm 12AWG
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

产品	Cable Couplers	交货时间	59 Days
子类别	Connector Photovoltaic	产品类别	Solar Connectors / Photovoltaic Connectors
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85366910
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant

电气参数

最大额定电流

25 A

连接器类型 - 电压输入

"-" marking

机械参数

深度	18 mm	间距	Not Required mm
重量	0.02	涂层	Minus Keyed
导线线规	12	端接方式	Press-Fit
外壳颜色	Black	连接器类型	Cable Coupler
接触镀层	Silver Plate	安装样式	Wire
触头材料	Copper Zinc	壳体材料	PPO
包装数量	100	主要材料	Photovoltaic
端接样式	Quick Connect	连接器颜色	:Black
触点数	1 POS	接触件端接	:Crimp
线规或范围 - mm²	4.0Â² [12]	第一连接器安装类型	:Cable

产品信息

SPG	100	类型	Power
连接器性别	M	系列	:SOLARLOK
产品特性	12 AWG	功能	Solarlok connector
钥匙类型	Minus	极性	:Negative
编码、键控	Yes	制造商全称	SOLARLOK
产品子类型	Connector	端口数	1 Port
单元数量	1	应用细节	for photovoltaic modules

环境参数

密封等级

IP67

相关型号

1-1579004-2

te connectivity / amp

Complete Tool For SOLARLOK With Long Handle Assembly Photovoltaic Connectors HAND CRIMP 4.0 - 6.0 TOOL CRIMP 10-12AWG SOLARLOK Hand tool 4.0+6.0mm Crimpers HAND CRIMP 4.0 - 6.0 CRIMP TOOL, SOLARLOK, 4MM-6MM Crimper;12-10AWG;Rectangular;SOLARLOKContacts;7-1579001-9Die Vario Crimp Head and Locator Cable Assembly Hand Crimping Tool Crimping tool, 1-1579004-2, TE Connectivity TE Connectivity Modular Mini CERTI-LOK 系列 Solar Cable Connector 压接工具 , 适用于6 → 4 AWG 线规格 CSV10 CRIMPING HANDTOOL SOLARLOK 4-6

¥1018.3000

详情

1394462-4

te connectivity / amp

Conn Power F 1 POS Solder ST Thru-Hole 1 Terminal PHOTOVOLTAIC PRODUCTS CONN FEMALE MINUS COUPLER 12AWG Female Cable Mount Solar Connector Coupler,Cable CSA 4mm2,Rated At 25A,1000V dc Solar Connectors / Photovoltaic Connectors CABLE COUPLER FEMALE MINUS KEYED 4.0 Conn Female Cable Coupler 12AWG Conn Female Cable Coupler 12AWG Product Highlights:ConnectorConnector Type = Cable CouplerFemaleKeyedKeying = MinusSearch Keywords:IEC 61215, 61646, Protection Class II, Photovoltaic Interconnection System, high voltage, high current, photovoltaic, solar, ground clip, solar panels, solar panel, ground PV panels, photovoltaics, solar cable, solar cable coupler, Photovoltaic Interconnection System, Decentralized junction box, residential combiner box, 5-string Combiner Box SOCKET, SOLARLOK, 4MM, NEG CONNECTOR,PHOTOVOLTAIC,SOLARLOK,CABLECOUPLER,1POS.,FEMALE,MINUS,12AWG Connector: DC mains; Features: "-" marking; female; 4mm2 Solarlok 12 AWG Minus Keying Black Female Cable Coupler Connector TE Connectivity 电缆安装管接头太阳能面板接头 , 截面积4mm²电缆, 额定25A, 1000 V 直流 PHOTOVOLT STEVERB1P

¥11.2880

详情

4-1394462-9

TE Connectivity

Solar Connectors / Photovoltaic Connectors Minus Fem Keyed 12 AWG Photovoltaic Connectors Minus Fem Keyed 12 AWG CONN FEMALE MINUS COUPLER 12AWG CONNECTOR,PHOTOVOLTAIC,SOLARLOK,CABLE Conn Power F 1 POS Solder ST Thru-Hole 1 Terminal Conn Female Cable Coupler 14AWG Bag Conn Female Cable Coupler 14AWG Bag Search Keywords:IEC 61215, 61646, Protection Class II, Photovoltaic Interconnection System, high voltage, high current, photovoltaic, solar, ground clip, solar panels, solar panel, ground PV panels, photovoltaics, solar cable, solar cable coupler, Photovoltaic Interconnection System, Decentralized junction box, residential combiner box, 5-string Combiner Box CONNECTOR,PHOTOVOLTAIC,SOLARLOK,CABLECOUPLER,1P,MINUS,FEMALE,12AWG,4.5MMTO6MM Solarlok 12 AWG Minus Keying Female PV Installer Cable Connector PHOTOVOLT CONNEC.1P

¥10.4720

详情
