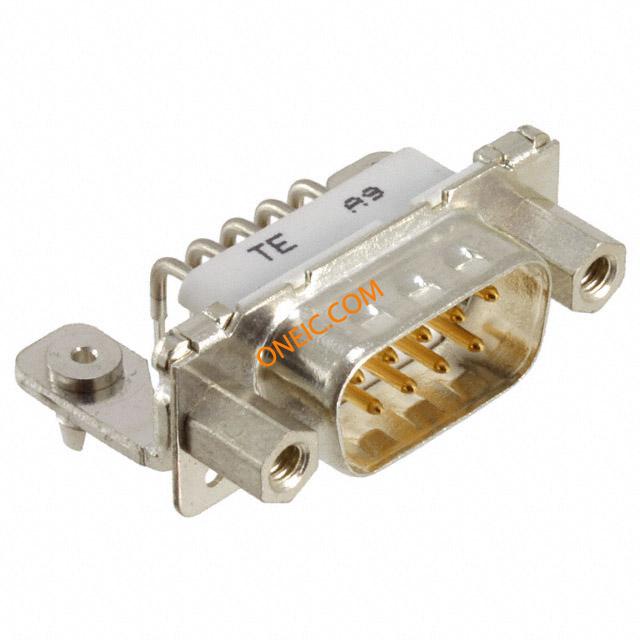

1393481-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors V23529B1225C209=SUB D STIFTLEI Standard Board Mount Connectors CONN DSUB PLUG 9 POS R/A GOLD 9 Way r/a Eurostyle D Plg, 4-40U Bolts Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = Right AngleProduct Series = HD 20 Type B - Solder TerminalWith Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 9WR/APLUG+SCREWLOCKS TE Connectivity Amplimite HD-20 系列 2.74mm 节距 9 路 直角 通孔安装 欧式印刷电路板 D-Sub 连接器 插头 V23529B1225C209=SUB D STIFTLEI |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 标准编号 | DIN 41652 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 连接器阻抗 | 母端螺钉锁，4-40 UNC |
| 最大额定电流 | 2.2A | ||
机械参数
| 颜色 | Gray | 深度 | 21.12mm |
| 间距 | 2.74 mm | 宽度 | 12.93mm |
| 长度 | 31.19mm | 密封型 | No |
| 外形尺寸(长x宽) | 1 | 占位面积 | 11.70 [.460] |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 轴径尺寸 | .026 |
| 外壳尺寸 | 1 | 方向 | 直角 |
| 端接方式 | Solder | 触头类型 | Signal |
| 外壳表面处理 | 锡 | 第二连接器 | With |
| 触点形状 | Round | 安装类型 | Through Hole |
| 外壳镀层 | Tin over Nickel | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.062 [1.57] | 连接器样式 | D-Sub |
| 插入件材料 | PBTP - Glass Fiber-Reinforced Thermoplastic | 锁定特性 | Female Screwlocks, 4-40 UNC |
| 外形（宽 x 高） | Eurostyle - 3.6 mm Installation Height | 触头材料 | Copper Alloy |
| 壳体材料 | Polybutylene Terephthalate (PBT), Polyester | 安装特性 | 板锁 |
| 包装数量 | 100 | 面板安装类型 | Without |
| 尺寸/外形 | 0.70 [.028] | 接地凹痕 | With |
| 端接样式 | Through Hole | 连接器颜色 | None |
| 触点数 | 9 | 位数 | 9 |
| 外壳尺寸-插件 | Full Metal | 安装孔直径 | 3.1 |
| 外壳材料及表面处理 | Steel, Tin Plated | 端子柱长度 | 3.20 [0.126] |
| 接触镀层厚度 | 20µin (0.51µm) | 外壳与棱镜材料 | 否 |
| 后壳材料及镀层 | 锡 | 护套（绝缘）材料 | Without |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 制造商 | 3.6 | 备注 | Connectors are preloaded with contacts.; With M3 screwlocks on request |
| 类型 | D-Subminiature | 连接器性别 | PIN |
| 系列 | HD-20 Type B - Solder Terminal | 料盒尺寸 | 9.43 mm [ .371 in ] |
| 产品特性 | Board Lock, Grounding Indents | 可密封 | 否 |
| 性能 | 第 2 级 | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
| 其他规格 | 4-40 UNC 包容式螺钉锁，板锁 | ||
环境参数
| 工作温度 | -55°C ~ 125°C | 封装热阻 | 1.57 mm [ .062 in ] |
