点击放大查看

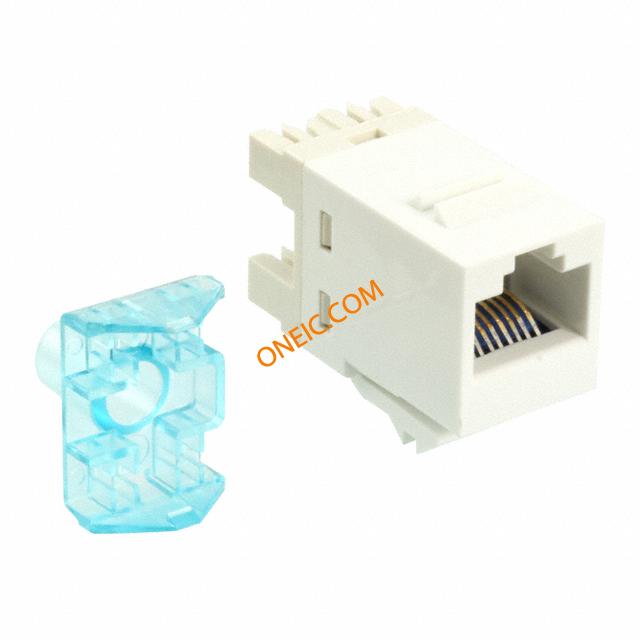

1375191-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Modular Jack F 8 POS IDT RA Cable Mount 8 Terminal 1 Port Poly Bag Cat 5e Cable Mounted Jacks CONN MOD JACK 8P8C Cat5e SL110 RJ45 UTP modular jack, white Modular Connectors / Ethernet Connectors ASSY SL110 C5E WHT Conn Modular Jack F 8 POS IDT RA Cable Mount 8 Terminal 1 Port Poly Bag Cat 5e Product Highlights:JackJack Type = 110ConnectNumber of Positions = 8Wiring Pattern = UniversalTermination Style = 110 style punch-downSearch Keywords:twisted pair cable, insulation-displacement, discrete wire, modular jacks, phone jacks, cable, input/output, box to box, HD Series RJ45 MODULAR JACK, 8POS, 1 PORT ASSY,SL110JACK,C5E,WHITE Modular UTP Jack IDC - Press-Fit Conn Modular Jack F 8 POS IDT RA Cable Mount 8 Terminal 1 Port |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 接触电阻 | 20 mohm | 最小供电电压 | 150VAC |
| 连接器类型 - 电压输入 | Cat5e | ||
机械参数
| 颜色 | White | 深度 | 16.25 mm |
| 高度 | 30.48 mm | 重量 | 0 |
| 包装方式 | Bag | 屏蔽 | Unshielded |
| 屏蔽类型 | No | 端接方式 | IDT |
| 外壳颜色 | White | 安装类型 | Cable Mount |
| 连接器类型 | 110Connect | 接触镀层 | Matte Tin over Nickel |
| 安装样式 | Panel | 触头材料 | Beryllium Copper |
| 壳体材料 | Polycarbonate | 总长度 | 14.47 mm |
| 包装数量 | Poly Bag | 端接样式 | 110 style punch-down |
| 触点数 | 8 | 接触件端接 | :IDC / IDT |
| 位数 | 8 | 外部壳体颜色 | White |
| 外部触点表面处理 | Gold | 外部触点材料 | Beryllium Copper |
| 外部壳体材料 | Polycarbonate (PC) | 内部类型（适配器端） | IDC, Pressdown, Punchdown Block |
| 外部触点镀层厚度 | 50µin (1.27µm) | ||
产品信息
| 类型 | Modular Jack | 样式 | Modular |
| 连接器性别 | F | 系列 | :SL |
| USOC 编码 | RJ45 | 摄像头类型 | Modular Jack 8p8c (RJ45, Ethernet) |
| 编码、键控 | No | 产品子类型 | Jack |
| 图案编号 | Universal | 类别编号 | Cat 5e |
| 端口数 | 1 Port | 射频系列/标准 | SL |
| 互连系统 | No | 性能类别 | Enhanced Cat 5 |
| 加载位置数 | 8 | ||
环境参数
| 额定等级 | Cat5e | 工作温度 | -10°C ~ 60°C |
