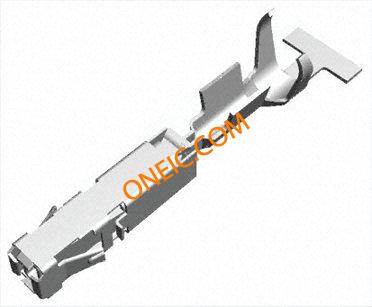

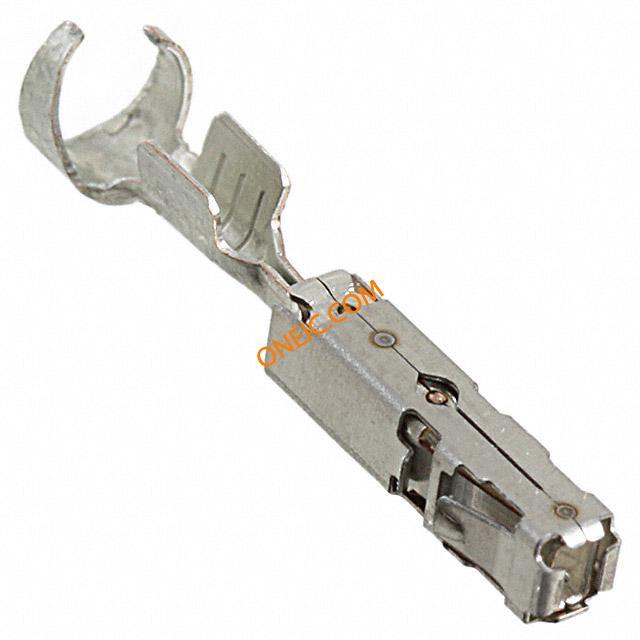

1241381-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Timer Contacts CONN SOCKET 17-20AWG SILVR CRIMP MCP 1.5K receptacle contact, 20-17 AWG Automotive Connectors MCP1.5 SKET CONTACT SWS Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = Multiple Contact Point (MCP)ReceptacleWire Range = 0.50-1.00² [20-17] mm [AWG]Insulation Diameter = 1.40 - 2.10 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer CONTACT, CRIMP, SOCKET, 20-17AWG MCP1.5Kreceptaclecontact,20-17AWG TE Connectivity AMP MCP 1.5K 系列 母 压接接线端子, 压接, 镀银触点 |
| 分类 |
商业参数
| 产品 | Terminals | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 接触电阻 | 2mΩ | 最大额定电流 | 20 A |
机械参数
| 重量 | 0.02 | 包装方式 | Bulk |
| 导线线规 | 17-20 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Silver |
| 安装样式 | Wire | 触头材料 | Copper-Nickel-Silicon |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 接触件端接 | Crimp | 线规或范围 - AWG | 20 to 17 |
产品信息
| 连接器性别 | SKT | 系列 | MCP 1.5 |
| 适用产品/相关产品 | :MCP Interconnection Systems | ||
环境参数
| 工作温度 | +140°C | 可用温度范围 | -40to+140°C |
| 结工作温度 | 140°C | ||
文档与媒体
相关型号
539635-1
te connectivity / amp
Assembly Tools, AMP MCP Interconnection System Crimpers ERGO CRIMP HD TOOL TOOL HAND ERGOCRIMP CPC series 1 ergo crimp tool frame Crimp Tool CRIMP TOOL, 0.5-2.1MM FRAME W/OUT DIE Crimper;Ratchet;22-10AWG;SOLISTRANDSplices/Terminals;539662-2Die Crimp tool without insert, 539635-1, TE Connectivity TE Connectivity ERGOCRIMP 系列 压接工具框架 ERGOCRIMP HAND TOOL
58078-3
te connectivity / amp
TOOL FRAME W/OUT DIES Crimpers TOOL FRAME W/OUT DIE HAND CRIMP TOOL/FASTOS(W/O DIES) Hand crimping tool frame, Ultra-Fast HAND CRIMP TOOL FASTOS Hand Crimping Tool Frame CRIMP TOOL, WITHOUT DIE, 14-26AWG AMP;RATCHETEDCRIMPTOOL;TOOL(LESSDIES) Crimping tool, 58078-3, TE Connectivity TE Connectivity Tetra-Crimp 系列 Ultra-Fast, Ultra-Fast Plus 压接工具框架 , 适用于26 → 14 AWG 线规格
1-968976-1
te connectivity / amp
Conn Housing RCP 3 POS 5.5mm Crimp ST Cable Mount Automotive Connectors MCP2.8 BU-GEH 3P CONN RCPT HOUSING 3POS MCP Conn Housing RCP 3 POS 5.5mm Crimp ST Cable Mount Search Keywords:MCON, MCON1.2, Multiple Contact Point (MCP), MCP. LeavySeal, LevySeal, HDSCS MCP2.8 BU-GEH 3P

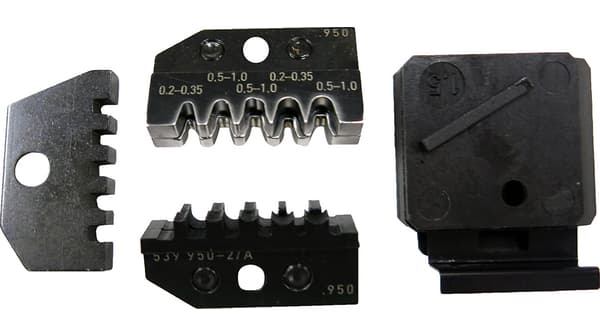

539950-2
