1241378-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip AMP MCP - Terminals CONN RCPT CONTACT 24-22AWG Automotive Connectors MCP1.5 SKT CNTCT SWS Timer Contacts Timer Contacts Product Highlights:ContactContact Type = ReceptacleMultiple Contact Point (MCP) SeriesWire Range = 0.20-0.40² [24-22] mm [AWG]Accepts Wire Insulation Diameter, Range = 1.10 - 1.40 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer 1.5 inch Socket Contact Multiple Contact Point (MCP) Series 22-24 AWG |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装规格 | 4,500 | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 4500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 包装方式 | Tape & Reel (TR) | 导线线规 | 22-24 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold | 触头材料 | Copper-Nickel-Silicon |
| 接触件端接 | Crimp | 接触镀层厚度 | 31.5µin (0.80µm) |
产品信息
| 连接器性别 | SKT | ||
相关型号
1-1579007-1
te connectivity / amp
Extraction Tool Insert Discrete Terminals Into Connector Housings Hand Tools EXTRACTION TOOL EXTRACTION TOOL Extraction Tool Extraction tool, 1-1579007-1, TE Connectivity
¥645.8640
详情
1-968976-1
te connectivity / amp
Conn Housing RCP 3 POS 5.5mm Crimp ST Cable Mount Automotive Connectors MCP2.8 BU-GEH 3P CONN RCPT HOUSING 3POS MCP Conn Housing RCP 3 POS 5.5mm Crimp ST Cable Mount Search Keywords:MCON, MCON1.2, Multiple Contact Point (MCP), MCP. LeavySeal, LevySeal, HDSCS MCP2.8 BU-GEH 3P
¥5.1680
详情

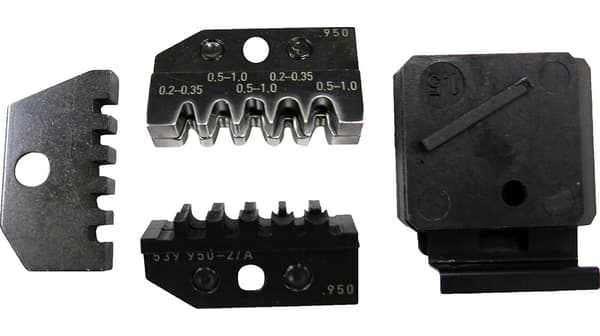

539950-2
