点击放大查看

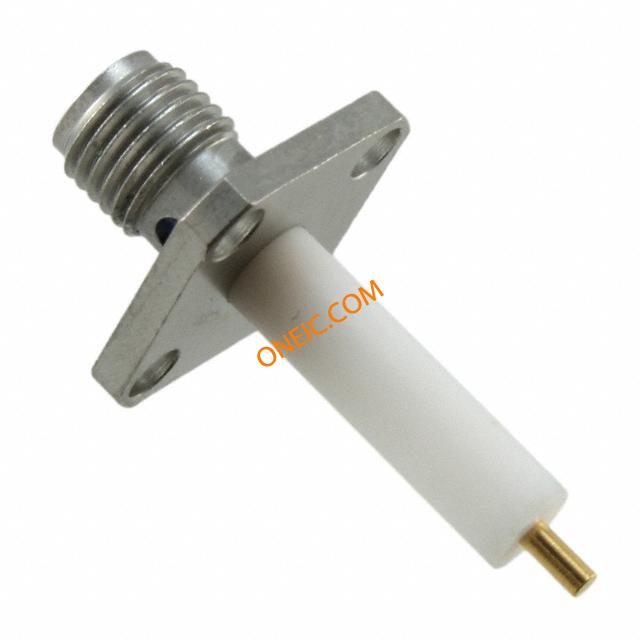

1052523-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Panel Mount Gold Over Copper SMA/QMA RF Connectors CONN SMA JACK STR 50 OHM SOLDER Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Panel Mount Gold Over Copper Product Highlights:ConnectorJackConnector Type = SMATerminate To Coaxial CableCoaxial Cable Termination Type = SolderSearch Keywords:RF, subminiature, military/aerospace, MIL-C-39012 JACK, SMA, REAR MOUNT FlangeMountJack,4Hole,SSTandPassivate Coax Cable Terminate Stainless Steel Straight Jack SMA RF Connector 2052 1201 02,SMA FM JACK RECPT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 335V | 最大频率 | 18GHz |
| 漏电流 | -(60-fGHz) | 绝缘电阻 | 10,000 |
机械参数
| 尺寸 | Standard | 长度 | 27.41 [1.079] |
| 重量 | 0.005 | 包装方式 | Bulk |
| 电缆类型 | :- | 端接方式 | Solder |
| 基体材料 | Stainless Steel | 边缘接触 | With |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | SMA | 接触镀层 | Gold Over Copper |
| 紧固类型 | Threaded | 外壳涂层 | Passivated |
| 安装样式 | 4-HoleFlange | 连接器样式 | SMA |
| 锁定特性 | Without | 触头材料 | Beryllium Copper |
| 面板安装类型 | 4 | 主要材料 | SMA |
| 连接器 - 电缆 | Solder | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | TFE Fluorocarbon |
| 中心触点镀层工艺 | Gold | 中心触点材料 | With |
| 供应商器件封装 | Straight | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 系列 | :- | 产品特性 | Extended Insulation |
| 极性 | Normal | 制造商全称 | AMP |
| 产品子类型 | Connector | 连接类型 | Coaxial Cable |
| 连接方式 | Epoxy | 射频系列/标准 | 1052523 |
环境参数
| 工作温度 | -65°C ~ 125°C | ||
