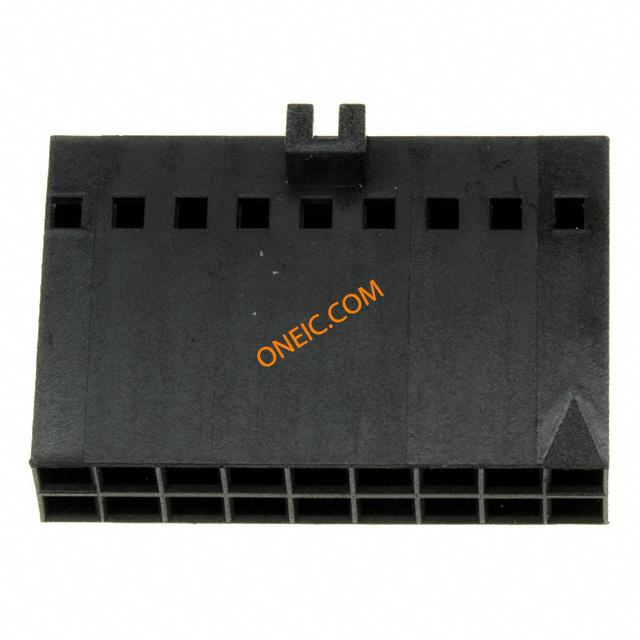

104483-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 POL DUAL Headers & Wire Housings CONN HOUSING 18 POS POLARIZED Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 SHORT PT RCPT HSG DR .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not applicable / RoHS Compliant | 认可国家 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | Yes | ||
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 VAC |
| 输入电阻 | 5000 | 连接器阻抗 | 压接 |
| 最大额定电流 | 3 A | 保护额定电压（VPR） | 750 V |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 长度 | 22.8 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 导线线规 | 20-32 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | 12 mΩ |
| 触头类型 | Female Socket | 第二连接器 | Without |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 安装样式 | Wire | 排数 | 2 |
| 高度（英寸） | 5.02 | 壳体材料 | Thermoplastic |
| 包装数量 | 1 | 面板安装类型 | 不带 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 18 | 接触件端接 | Crimp |
| 位数 | 18 | 兼容外壳尺寸（如TM-700等） | 接触件 |
| 安装孔直径 | 带有 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMPMODU MOD IV |
| 产品特性 | Polarizing Key | 产品子类型 | Receptacles / Sockets - Housings |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
