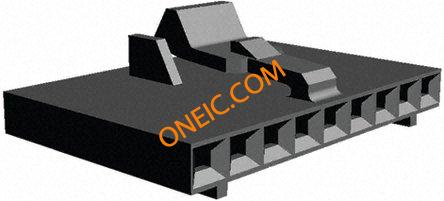

104257-8
| 制造商 | TE Connectivity Ltd. |

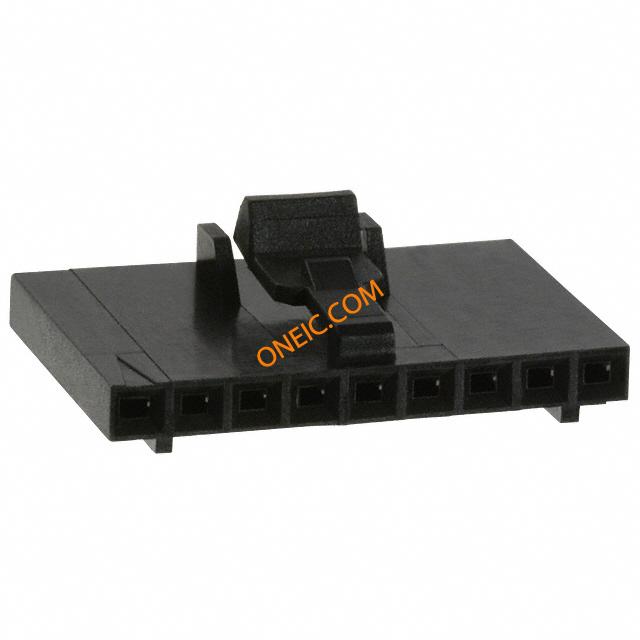

| 描述 | Conn Housing RCP 9 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 9POS .1" POL UNLOAD Housing FH 9way latch Rec 2.54mm AmpModu Headers & Wire Housings RECEPTACLE ASSY 9P Conn Housing RCP 9 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 9Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR HOUSING, RECEPTACLE, 9POS, 2.54MM ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 9 路 直 母 PCB 壳体 09 MTE RCPT HSG SR LATCH .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | CSA,UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 3/Contact A | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 2.54 mm | 长度 | 22.8mm |
| 重量 | 0 | 包装方式 | Bulk |
| 导线线规 | 22-30 AWG | 排间距 | 2.54 mm |
| 外壳样式 | Receptacle | 端接方式 | IDC |
| 触头类型 | Female Socket | 极化 | Latched |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | Receptacle | 壳体材料 | Thermoplastic |
| 总长度 | 22.8 mm | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.1" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 9 | 接触件端接 | Crimp |
| 位数 | 9 | 中心触点材料 | 2.54 [.100] |
产品信息
| 备注 | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MTE |
| 预加载 | No | 编码、键控 | No |
| 制造商全称 | AMPMODU/MTESeries | 产品子类型 | Housing |
| 矩阵（列×行） | 0.100in. | 适用产品/相关产品 | Centerline Single-Row Connector |
环境参数
| 工作温度 | -65C to 105C | ||
文档与媒体
相关型号
103634-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 9POS PCB TIN Headers & Wire Housings HEADER R/A 9POS PCB TIN Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 9Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 09 MTE HDR SRRA LATCH .100CL
5-104362-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 9POS 15AU Headers & Wire Housings LTCHNG HDR W/SWAGE 9 Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 9Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 9POS, 2.54MM 09 MTE HDR SRST LATCH W/HLDWN
103670-8
te connectivity / amp
Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 9POS 15AU Headers & Wire Housings LTCHNG HDR W/SWAGE 9 1512 Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 9Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 09 MTE HDR SRST LATCH W/HLDWN
104362-8
te connectivity / amp

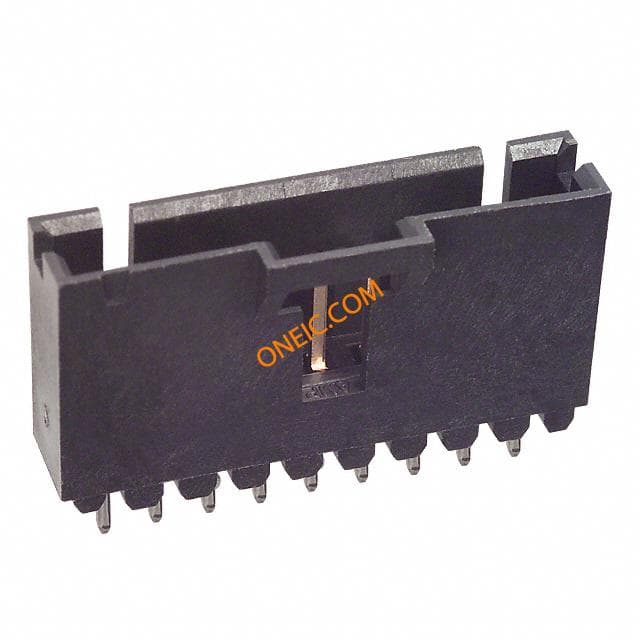

Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 9POS 15AU 09 MTE HDR SRST LATCH W/HLDWN
5-104363-8
te connectivity / amp

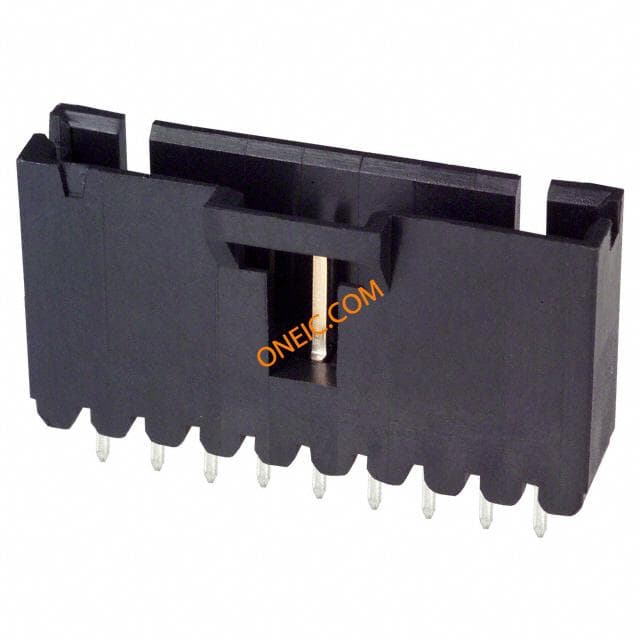

Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 9POS 15AU TE Connectivity MTE Series 2.54mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 09 MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 9Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 09 MTE HDR SRST LATCH .100CL
103653-8
te connectivity / amp
Conn Housing PL 9 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 9POS .1" POL UNLOAD Headers & Wire Housings PIN ASSEMBLY 9P Conn Housing PL 9 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 9Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm 节距 9 路 直 公 电缆安装 PCB 连接器外壳 09 MTE SHRD PIN HSG SR LATCH
5-103673-8
te connectivity / amp

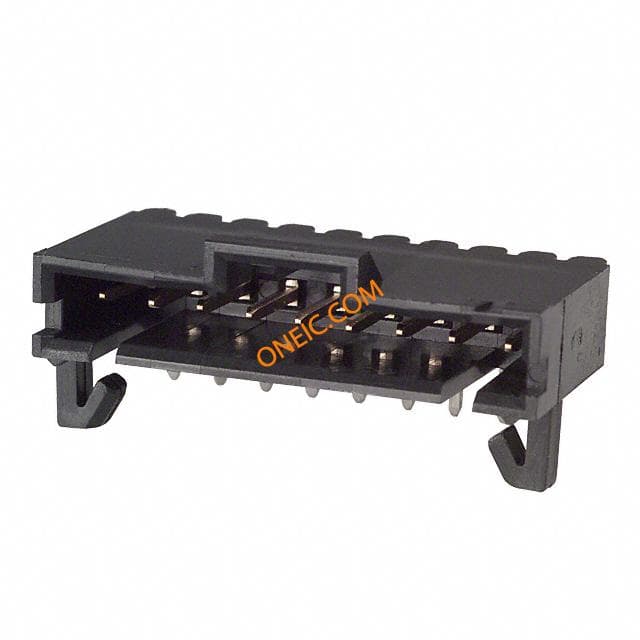

Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 9POS 15AU Header 9 way pin 2.54mm IDC AmpModu Headers & Wire Housings HDR PIN 1X09C R/A THRU HOLE Conn Shrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 9POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm节距 9路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 9 MTE HDR SRRA LATCH W/HLDWN
103951-8
te connectivity / amp
Conn IDC Connector PIN 9 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 9POS .100 22-26 15AU
5-103639-8
te connectivity / amp

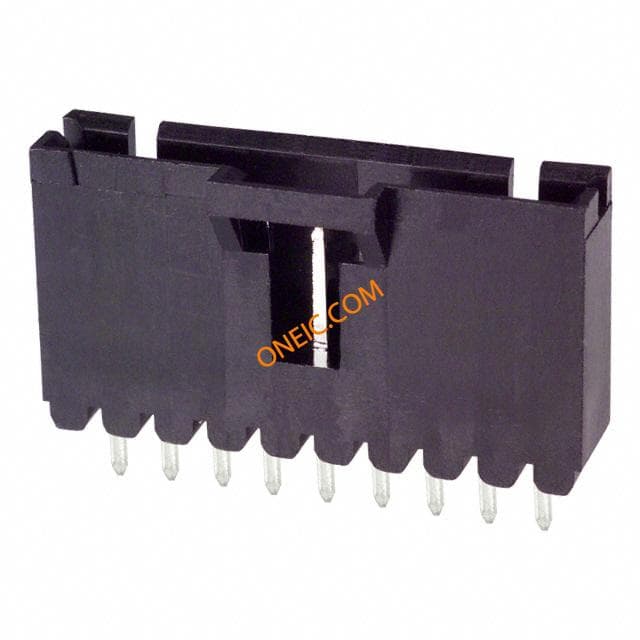

Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 9POS PCB TIN Headers & Wire Housings LTCH HDR W/O SWAGE 9 09 MTE HDR SRST LATCH .100CL 09 MTE HDR SRST LATCH .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
