点击放大查看

103968-9

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 10POS .100 POLAR TIN
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Rail / Tube

合规参数

RoHS

Contains lead / RoHS non-compliant

机械参数

颜色	Black	间距	2.54 mm
包装方式	Tube	导线类型	Ribbon Cable
导线线规	22-26 AWG	端接方式	IDT
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Tin-Lead
排数	1	电缆端接方式	IDC
触点数	10	位数	10
接触镀层厚度	100µin (2.54µm)

产品信息

类型	IDC Connector	连接器性别	RCP
产品特性	Closed End

相关型号

103635-9

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 10POS 15AU Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 10Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 10 MTE HDR SRRA LATCH .100CL

¥4.0120

详情

1375549-9

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADR 10POS IDC STR SMD TIN

¥6.9319

详情

147324-9

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 10POS R/A SMD W/POL Headers & Wire Housings 10 MTE HDR SRRA SMT.100CL 10 MTE HDR SRRA SMT.100CL 10 MTE HDR SRRA SMT.100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

¥16.8314

详情

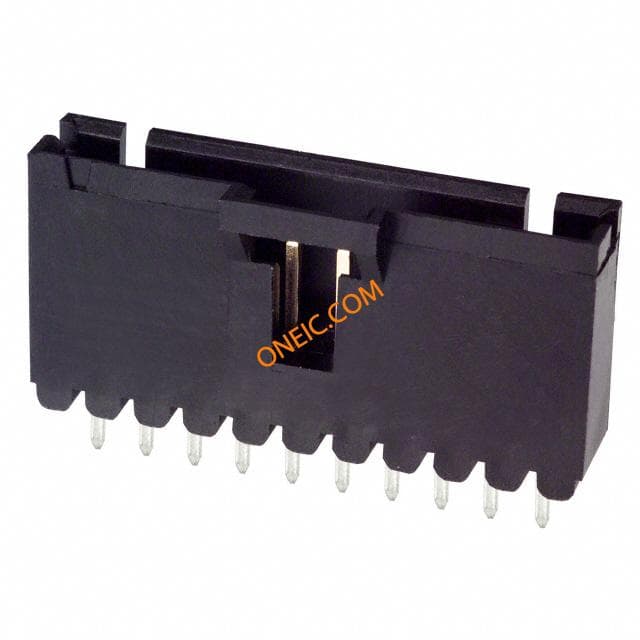

5-104363-9

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 10POS 15AU TE Connectivity MTE Series 2.54mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 10 MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 10Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTEHI-TEMPHDRASSY,10MTEHDRSRSTLATCH.100CL TE Connectivity AMPMODU MTE 系列 2.54mm节距 10路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 10 MTE HDR SRST LATCH .100CL

¥6.6028

详情

103949-9

te connectivity / amp

Conn IDC Connector PIN 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PIN HOUSING 10POS .100 SNGL Headers & Wire Housings 2X10 MTE SHR PIN SR 240 Conn IDC Connector PIN 10 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:ConnectorNo PreloadedHousing Gender = Connector - PinAccepts Contact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X10 MTE SHR PIN SR LTCH .100

¥10.1320

详情

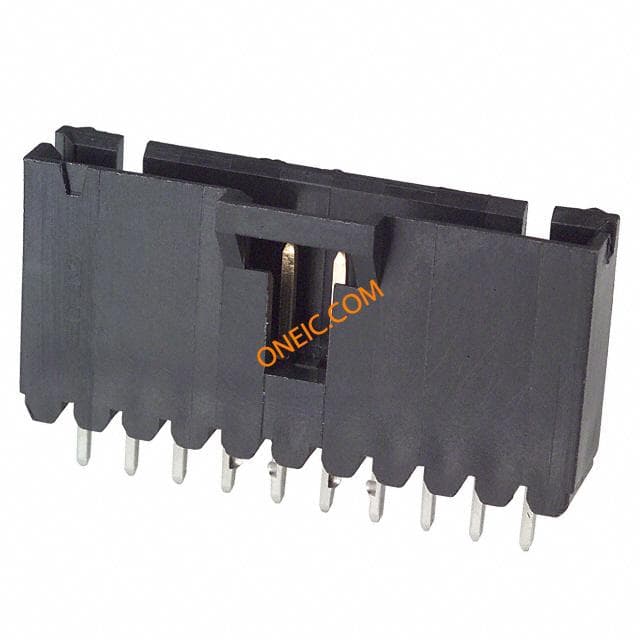

5-103908-9

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 10POS 30AU Headers & Wire Housings LATCH HDR W/SWAGE 10 Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 10Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONN, HEADER, 10POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm节距 10路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 10 MTE HDR SRST LATCH W/HLDWN

¥5.0320

详情

103639-9

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 10POS PCB TIN Headers & Wire Housings LTCH HDR WO SWAGE 10 Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 10Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 10 MTE HDR SRST LATCH .100CL

¥3.5720

详情

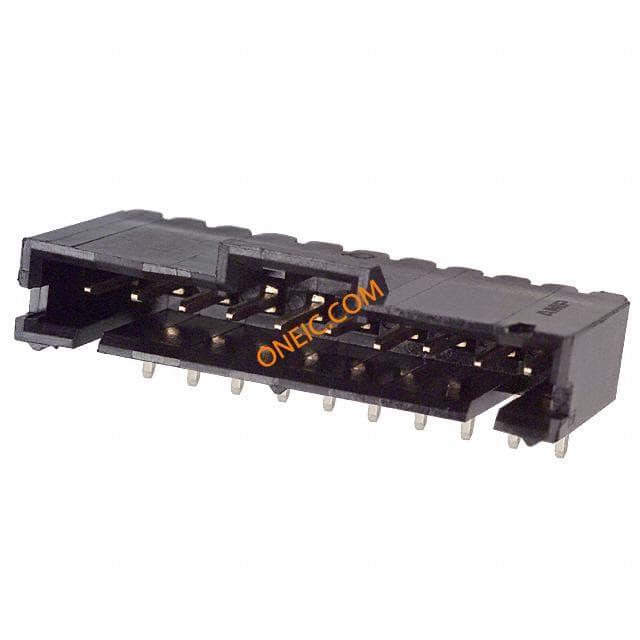

5-103635-9

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 10POS 15AU Header 10 way pin 2.54mm IDC AmpModu Headers & Wire Housings LATCHING HDR SHRD 10 with hold down Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 10Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADER, MTE, 10WAY AMPMODUMTER/AHDAY,10MTEHDRSRRALTCH.100CLLF TE Connectivity AMPMODU MTE 系列 2.54mm节距 10路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 10 MTE HDR SRRA LTCH.100CL LF

¥4.4200

详情

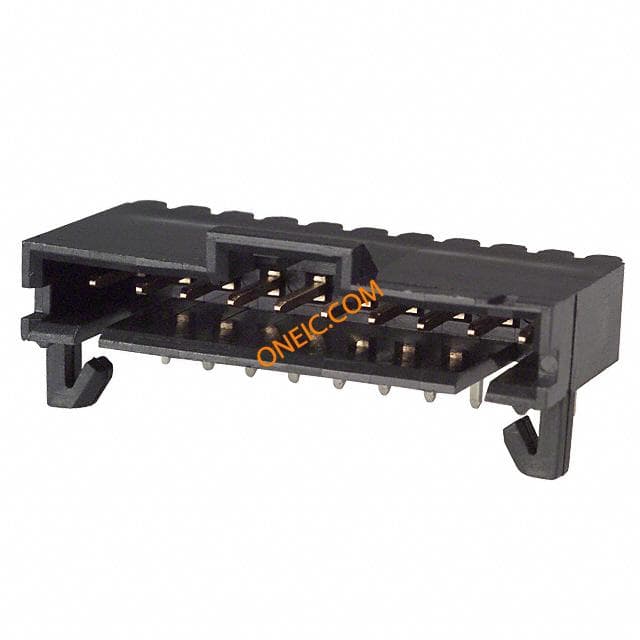

5-103904-9

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 10POS 30AU Headers & Wire Housings LATCHING HDR SHRD 10 with hold down Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 10 MTE HDR SRRA LATCH W/HLDWN

¥5.1680

详情

5-103944-9

te connectivity / amp

Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts PLUG 10POS .1" TIN STRIP OF 2 Headers & Wire Housings PIN ASSEMBLY 10P .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingHousing Type = Housing - PinHousing Accepts Contact Type = Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X10 MTE SHRD PIN SR POL .100

¥9.0600

详情
