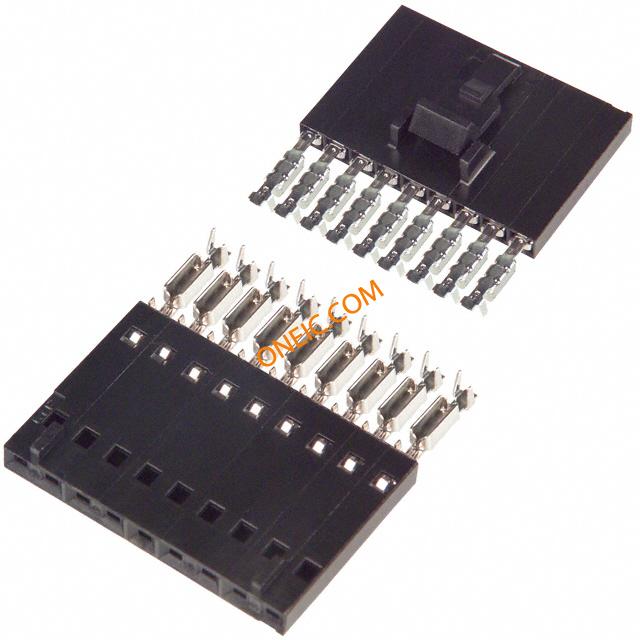

103956-8

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 9 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 9POS .100 POLAR TIN Headers & Wire Housings RECEPTACLE ASSY 9P Conn IDC Connector RCP 9 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 9Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X9 MTE RCPT SR LATCH .100CL
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	24

合规参数

RoHS	Contains lead / RoHS non-compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

供电电压	267 V	接触电阻	15 mΩ
输入电阻	5000	连接器阻抗	刺破式压接 (IDC), 压接
最大额定电流	3 A	保护额定电压（VPR）	600 VAC

机械参数

颜色	Black	间距	2.54 mm
高度	5.08 mm [ .2 in ]	长度	45.72 mm [ 1.8 in ]
锁定类型	锁闩	包装方式	Tube
导线类型	Discrete or Ribbon Cable	壳体颜色	黑色
导线线规	22-26 AWG	排间距	2.54 mm
端接方式	IDT	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Bright Tin-Lead Over Nickel	紧固类型	Latch Lock
安装样式	Wire	排数	1
压力（PSI）	标准	插入件材料	磷青铜
触头材料	Phosphor Bronze	壳体材料	Thermoplastic
包装数量	24	面板安装类型	不带
电缆端接方式	IDC	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	9
绝缘直径	1.37 mm [ .054 in ]	位数	9
兼容外壳尺寸（如TM-700等）	与接头配合	安装孔直径	带有
典型触点布局	同轴	接触镀层厚度	100µin (2.54µm)
静电放电屏蔽	带有	接触件镀层 - 插柱（配合端）	亮光

产品信息

备注	带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。	类型	IDC Connector
连接器性别	RCP	系列	AMPMODU MTE
产品特性	Closed End	产品子类型	Headers
