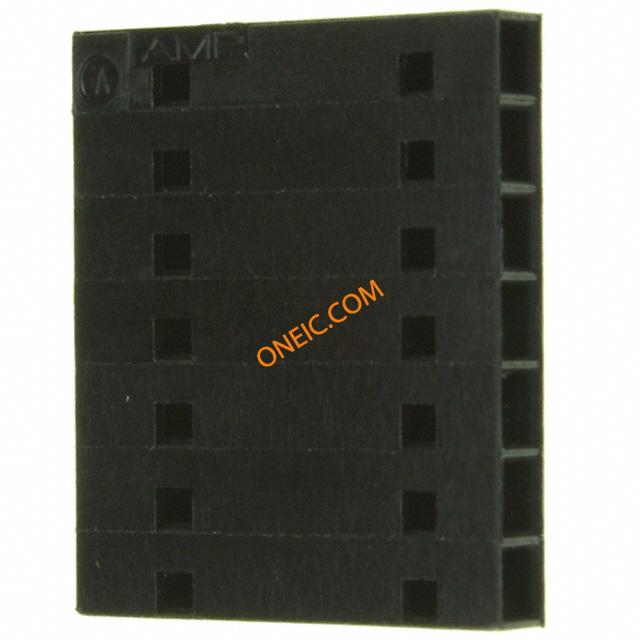

103688-6

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 7POS .1" UNLOAD Headers & Wire Housings 07 RCPT HSG SR PLAIN .100 Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 7Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE RCPT HSG SR PLAIN .100
分类	光电子学LED照明LED照明模块

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-0

电气参数

供电电压	600 VAC	输入电阻	5000
连接器阻抗	刺破式压接 (IDC), 压接	最大额定电流	3/Contact A
保护额定电压（VPR）	600 V

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	高度	2.48 mm
长度	1.77 mm [ .698 in ]	锁定类型	不带
包装方式	Bulk	壳体颜色	黑色
导线线规	22-30 AWG	排间距	2.54 mm
触头类型	Female Socket	第二连接器	Without
外壳颜色	Black	安装类型	Straight
连接器类型	Crimp, Insulation Displacement Crimp (IDC)	安装样式	不带
排数	1	封装形式	Receptacle
插入件材料	磷青铜	壳体材料	Thermoplastic
总长度	17.72 mm	包装数量	1
面板安装类型	不带	端接样式	Crimp
第一触头极性	Socket (Female)	配接方向	Without
触点数	7	接触件端接	Crimp
位数	7	兼容外壳尺寸（如TM-700等）	压接扣入式接触件
安装孔直径	不带	中心触点材料	2.54 [.100]
典型触点布局	同轴	静电放电屏蔽	不带

产品信息

备注	Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta	类型	Housing
连接器性别	RCP	系列	MTE
预加载	No	编码、键控	No
产品子类型	Housing

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

-65C to 105C

文档与媒体

在线文档

103688-6?RQPN=103688-6

相关型号

103361-5

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 7POS 30AU Headers & Wire Housings SHROUDED RA SINGLE 7 with standoffs Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 7Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 07 MODII HDR SRRA SHRD .100CL

¥7.0560

详情

103080-5

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Headers & Wire Housings SHROUDED VERT SNGL 7 with standoffs .100 inch AMPMODU Headers CONN HEADER VERT 7POS PCB TIN 07 MODII HDR SRST SHRD .100CL 07 MODII HDR SRST SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors, AMPMODU 7 Position Through-Hole Single Row Straight .100 Inch Shrouded Header

¥8.2080

详情

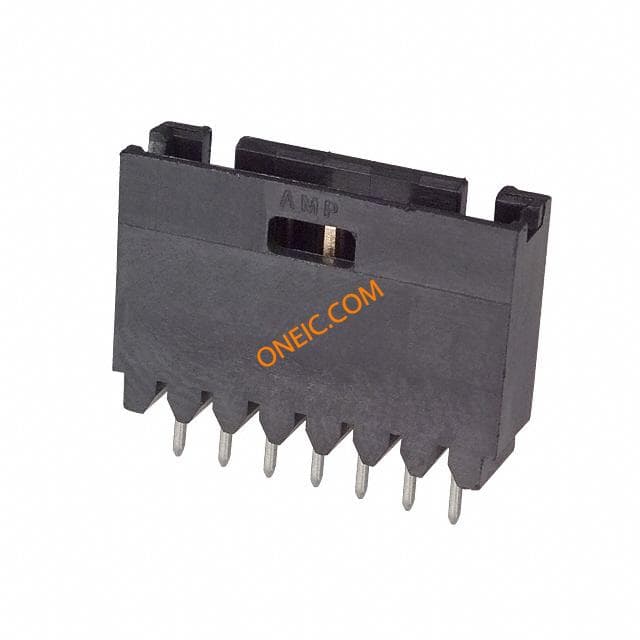

5-102202-4

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 7POS 15AU Headers & Wire Housings HDR 1X07P VRT T/H Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded7 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, WIRE-BOARD CONNECTOR HEADER 7POS, 2.54MM Connector: wire-board; AMPMODU MOD II; socket; male; PIN:7; 2.54mm 07 MODII HDR SRST SHRD LF

¥7.4160

详情

102203-4

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER R/A .100 7POS 15AU Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 7Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 07 MODII HDR SRRA SHRD .100CL

¥11.8800

详情

104345-5

te connectivity / amp

Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 7POS VERT 15AU

详情

104344-5

te connectivity / amp

Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 7POS VERT 30AU Headers & Wire Housings 07 MODII HDR SRST B/A W/HD 07 MODII HDR SRST B/A W/HD 07 MODII HDR SRST B/A W/HD Search Keywords:board to board, AMPMODU, pcb connectors,

¥2.2824

详情

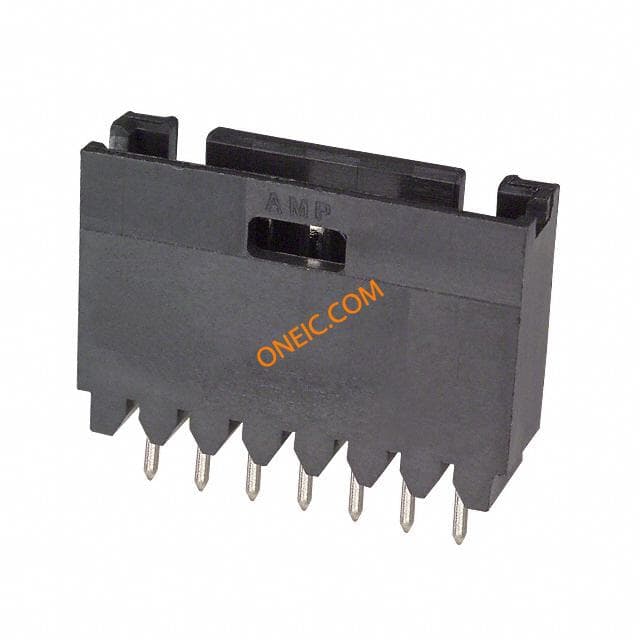

5-103080-5

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT 7POS PCB TIN Headers & Wire Housings 7P HDR SRST SHROUDED .100 Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:board to board, AMPMODU, pcb connectors, AMPMODU 7 Position Through-Hole Single Row Straight 2.54 mm Shrouded Header 07 MODII HDR SRST SHRD .100CL

¥5.9040

详情

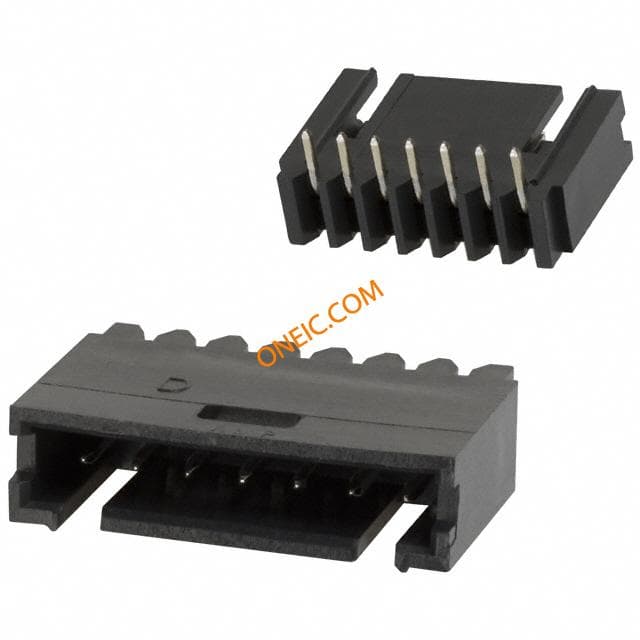

5-102523-5
