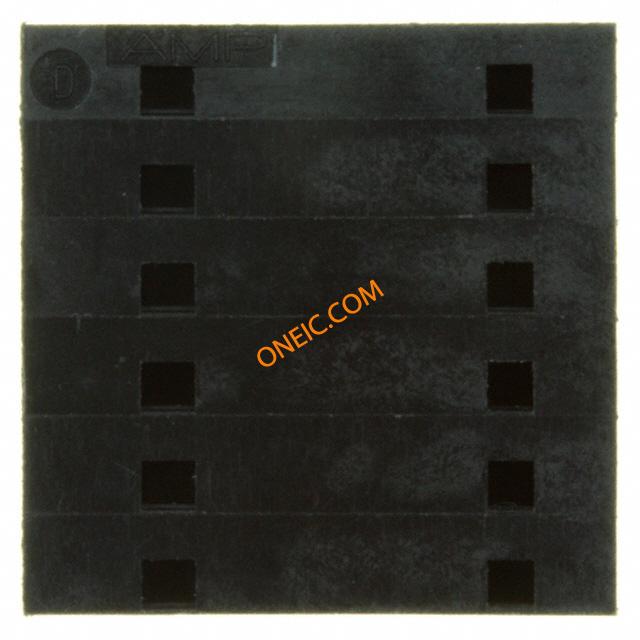

点击放大查看

103688-5

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 6POS .1" UNLOAD Headers & Wire Housings HSG REC 1X06C STD Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MTE RCPT HSG SR PLAIN .100
分类	光电子学LED照明LED照明模块

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-0

电气参数

开关功能	Unlatched	供电电压	600 VAC
输入电阻	5000	连接器阻抗	刺破式压接 (IDC), 压接
最大额定电流	3	保护额定电压（VPR）	600 VAC

机械参数

颜色	Black	间距	2.54 mm
高度	.25 mm [ .098 in ]	长度	1.52 mm [ .598 in ]
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	导线线规	22-30 AWG
排间距	2.54 mm	触头类型	Female Socket
第二连接器	Without	外壳颜色	Black
安装类型	Straight	连接器类型	Crimp, Insulation Displacement Crimp (IDC)
安装样式	Free Hanging	排数	1
封装形式	Receptacle	插入件材料	磷青铜
壳体材料	Thermoplastic	包装数量	1
面板安装类型	不带	端接样式	Crimp
第一触头极性	Socket (Female)	配接方向	Without
触点数	6	接触件端接	Crimp
位数	6	兼容外壳尺寸（如TM-700等）	压接扣入式接触件
安装孔直径	不带	中心触点材料	2.54 [.100]
典型触点布局	同轴	静电放电屏蔽	不带

产品信息

备注	Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta	类型	Housing
连接器性别	RCP	系列	MTE
预加载	No	编码、键控	No
产品子类型	Housing

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

-65 – 105
