点击放大查看

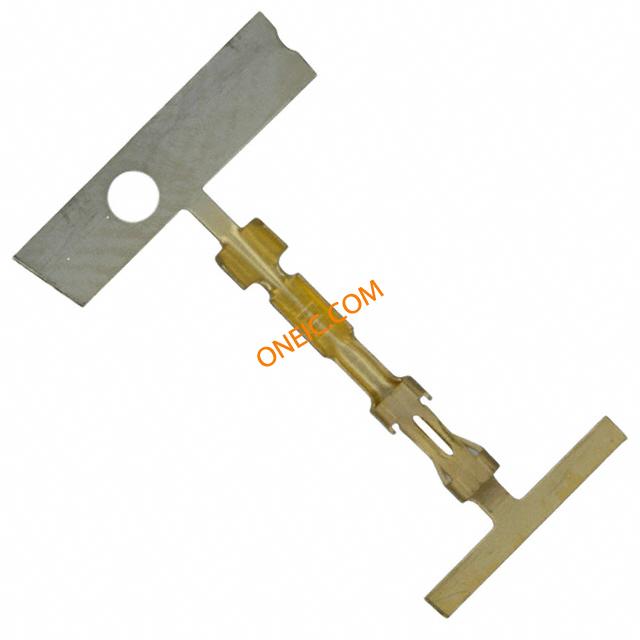

103455-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 27-32AWG 30AU CRIMP Contact SKT Crimp ST Cable Mount Strip Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.02 mmWire Range = 0.03-0.10² [32-27] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MOD V RECP PLTD 30 AU |
| 分类 |
商业参数
| 标准包装数量 | Tape & Reel | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准编号 | CSA LR7189, UL E28476 |
电气参数
| 供电电压 | 250 | 接触电阻 | 12 mΩ |
| 输入电阻 | 5000 | 钳位电压 | 750 |
| 连接器阻抗 | 压接 | 最大额定电流 | 3 |
机械参数
| 包装方式 | Tape & Reel (TR) | 电缆类型 | 分离式导线 |
| 导线线规 | 27-32 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Gold Over Nickel |
| 压力（PSI） | 高 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 包装数量 | 12500 |
| 绝缘高度 | 是 | 端接样式 | 插座 |
| 接触件端接 | Crimp | 绝缘直径 | 1.02 mm [ .04 in ] |
| 镀层厚度（通用） | 镀金 | 兼容外壳尺寸（如TM-700等） | 公端子 |
| 触头长度-柱 | 信号（数据）/电源 | 接触件表面处理 - 配合 | 金 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 备注 | (*) For use with Model "K" machines. Call the Technical Assistance Center (1-800-522-6752) for part numbers of applicators for use with Model "G" machines, as well as other bench machines and fully automatic AMPOMATOR lead making machines. | 连接器性别 | SKT |
| 产品子类型 | 接触件 | ||
环境参数
| 工作温度 | -65 – 105 | ||
