点击放大查看

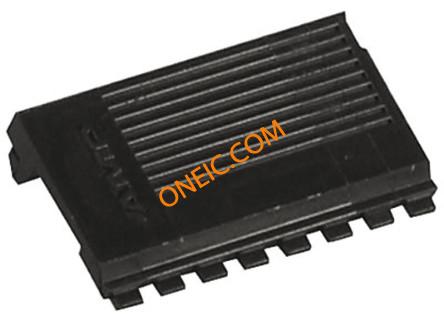

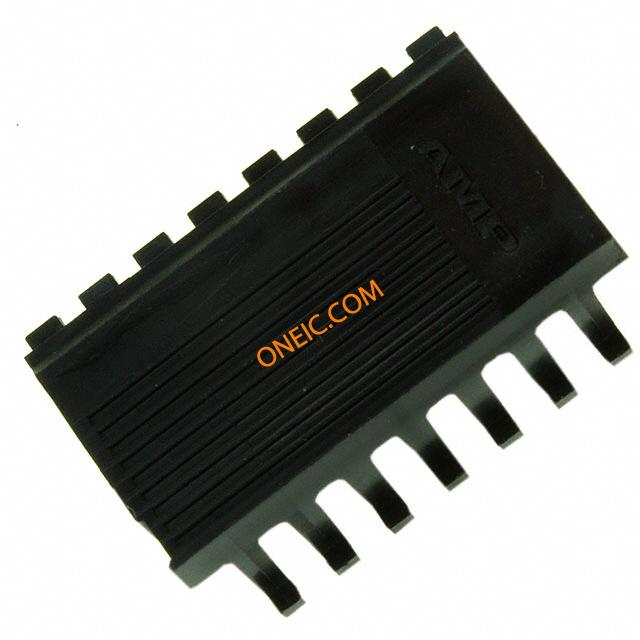

102536-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 16 POS Cover Thermoplastic Black .100 AMPMODU Headers, Housings & Contacts CONN COVER BACK 16POS MT .100 Cover,ForShieldingandNon-Shielding,16 Cover; For Shielding and Non-Shielding; 16; Back; Low; Thermoplastic; Black Headers & Wire Housings BACK COVER 16 POS shielding/nonshldng Connector Accessories 16 POS Cover Thermoplastic Black Product Highlights:AccessoryAccessory Type = CoverNumber of Positions = 16Cover Type = For Shielding and Non-Shielding ApplicationsCover Side = BackSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Cover;ForShieldingandNon-Shielding;16;Back;Low;Thermoplastic;Black 16 AMPMODU MT COVER DR .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | Yes | ||
机械参数
| 颜色 | Black | 深度 | 12.19 mm |
| 间距 | 2.54 mm [ .100 in ] | 高度 | 7.49 mm |
| 材料（通用） | Thermoplastic | 外壳样式 | 屏蔽 |
| 端接方式 | Crimp | 触点尺寸 | Back |
| 柱间距 | 2.54 [.100] | 连接器类型 | Cover, Back |
| 安装样式 | 低 | 排数 | 1 |
| 外形（宽 x 高） | Low | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 20.32 mm |
| 主要材料 | InterconnectSystem | 触点数 | 16 |
| 位数 | 16 | 兼容外壳尺寸（如TM-700等） | 双排母端组件 |
产品信息
| 类型 | Cover | 连接器性别 | Female |
| 系列 | MT | 覆盖范围 | Back |
| 盖类型 | For Shielding and Non-Shielding Applications | 制造商全称 | AMP |
| 产品子类型 | Accessory | 附件类型 | Cover, Back |
| 射频系列/标准 | 102536 | 适用产品/相关产品 | Double Row Receptacle Assemblies |
环境参数
| 工作温度 | +105°C | ||
