100669-1
| 制造商 | |
| 描述 | Conn Hard Metric PL 175 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 175POS VERT GOLD 2MM Z-Pack,Header,Plug,Type B,vertical,175w Hard Metric Connectors Z-PACK M.CONN.175P Conn Hard Metric PL 175 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACKM.CONN.175P. TE Connectivity Z-PACK HM 系列 2mm 节距 175 路 直向 7 排 公 背板连接器, 按式端子, 1.5A |
| 分类 |
商业参数
| 其他名称 | 1006691 | 产品类别 | Hard Metric Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 10 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS/Not ELV Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 最大额定电流 | 1.5A |
机械参数
| 间距 | 2 mm | 包装方式 | Tube |
| 方向 | 直 | 屏蔽类型 | Ground Return Shielding |
| 端接方式 | Press Fit | 触头类型 | Short Tail |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 连接器类型 | Type B, 25 Column | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 7 |
| 连接器样式 | B 25 | 连接器用途 | Backplane |
| 触头材料 | Phosphor Bronze | 前部连接器 | Level 1 |
| 壳体材料 | Polyester GF | 总长度 | 50.00 [1.968] |
| 包装数量 | 10 | 端接排数 | 按式 |
| 端接样式 | Press Fit | 配接方向 | Without |
| 触点数 | 175 | 端接表面处理 | Tin-Lead over Nickel |
| 位数 | 175 | 柱体长度（配合） | 3.71 [0.146] |
| 接触镀层厚度 | 30µin (0.76µm) | 后壳材料及镀层 | 硬公制 B 型 |
产品信息
| 类型 | Hard Metric | 连接器性别 | Plug |
| 系列 | Z-Pack | 制造商全称 | AMP |
| 产品子类型 | Connector | 模块/板类型 | No |
| 列数 | 25 | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号

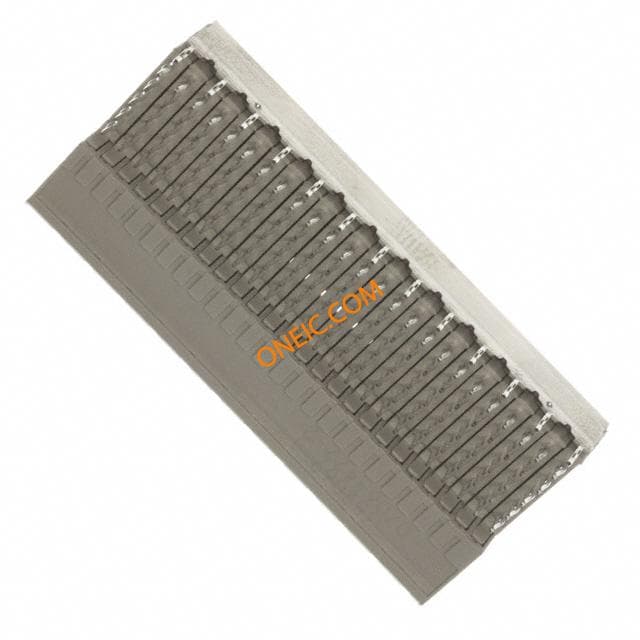

352069-1
