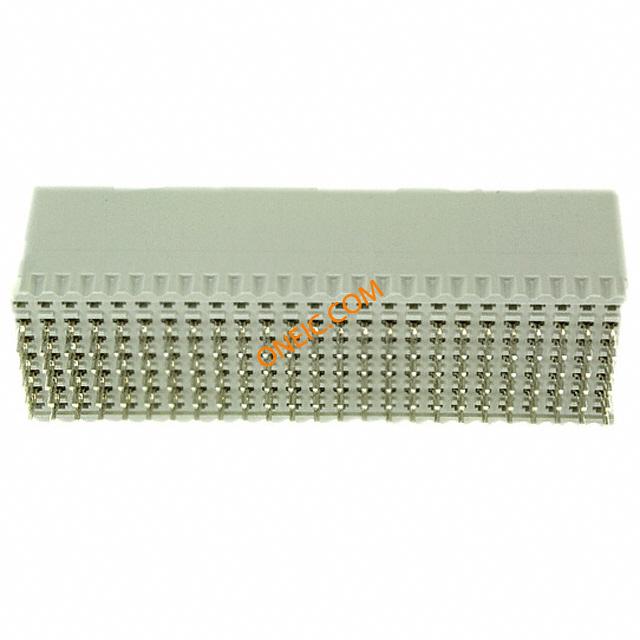

100141-1
| 制造商 | |
| 描述 | Conn Hard Metric PL 125 POS 2mm Press Fit ST Thru-Hole Hard Metric Connectors Z-PK/B MALE HDR 125P 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 125POS VERT GOLD 2MM Conn Hard Metric PL 125 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/BMALEHDR125P,2MMHM TYPE B 125 Position Straight 5 Row 2 mm Plug Hard Metric Z-Pack Connector Z-PACK/B MALE HDR 125P, 2MM HM |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS/Not ELV Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 数据速率（最大） | ≤1 |
| 接触电阻 | 20 mohm | 最大额定电流 | 1.5A |
| 最小供电电压 | 500VAC | ||
机械参数
| 深度 | 15.4 mm | 间距 | 2 mm |
| 高度 | 13.45 mm | 长度 | 50 |
| 包装方式 | Tube | 屏蔽 | 否 |
| 壳体颜色 | 灰色 | 屏蔽类型 | No |
| 端接方式 | Press Fit | 触头类型 | Short Tail |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 连接器类型 | Type B, 25 Column | 接触镀层 | Gold Over Nickel |
| 触点时序 | 否 | 安装样式 | Through Hole |
| 排数 | 5 | 端子样式 | ACTION PIN, 信号 |
| 连接器样式 | B 25 | 连接器用途 | Backplane |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 前部连接器 | Level 1 | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 总长度 | 50.00 [1.968] | 包装数量 | 11 |
| 面板安装类型 | 垂直 | 端接样式 | Press Fit |
| 配接方向 | Without | 触点数 | 125 |
| 端接表面处理 | Tin-Lead over Nickel | 位数 | 125 |
| 柱体长度（配合） | 3.71 [0.146] | 接触件表面处理 - 配合 | 第 1 级 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 制造商 | 13.45 | 类型 | Hard Metric |
| 连接器性别 | Plug | 系列 | Z-Pack |
| 卡类型 | 无 | 制造商全称 | AMP |
| 产品子类型 | Headers | 控制器系列 | 否 |
| 模块/板类型 | No | 列数 | 25 |
| 加载位置数 | All | ||
环境参数
| 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | 工作温度 | -55°C ~ 125°C |
相关型号
106774-1
te connectivity / amp
Conn Hard Metric PL 125 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RECEPT 125 POS VERT 2MM PCB Receptacle 125 way pcb 2mm Z-Pack Hard Metric Connectors 2MMHM VRT REC TYPE B Conn Hard Metric PL 125 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, RECEPTACLE 125POS TE Connectivity Z-PACK HM 系列 2mm 节距 125 路 直向 5 排 母 背板连接器, 焊接端子, 1.5A
