点击放大查看

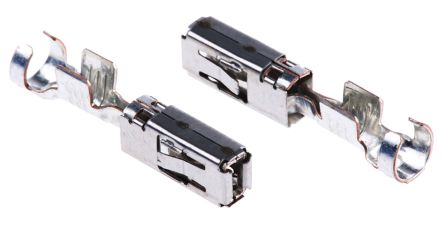

1-968876-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Timer Contacts CONN RCPT CONTACT 13.5-17AWG MCP 2.8 SWS receptacle contact,AWG 17-13 Automotive Connectors RECEPTACLE CONTACT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = Multiple Contact Point (MCP), Standard TimerReceptacleWire Range = 1.00-2.50² [17-13.5] mm [AWG]Single Wire Sealing SystemSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer MCP2.8SWSreceptaclecontact,AWG17-13 TE Connectivity AMP MCP 2.8 系列 母 压接接线端子, 压接, 镀锡触点 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Contacts | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 40 A | ||
机械参数
| 包装方式 | Bulk | 导线线规 | 13-17 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Socket | 电缆直径 | 2.5mm² |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 触头材料 | Copper-Nickel-Silicon | 端接排数 | 压接 |
| 端接样式 | Crimp | 接触件端接 | Crimp |
| 接触镀层厚度 | 39µin (1.00µm) | 线规或范围 - AWG | 17-13 |
产品信息
| 连接器性别 | SKT | 系列 | MCP |
| 适用产品/相关产品 | AutomotiveConnector | ||
环境参数
| 工作温度 | - 40 C to + 130 C | ||
