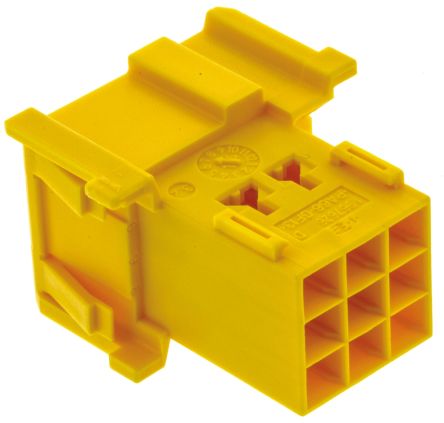

点击放大查看
1-967626-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 9 POS 5mm Crimp ST Panel Mount Loose Piece Timer Connectors CONN TAB HOUSING 2.8MM JPT 9POS MCP 2.8 9 way tab housing, key A, yellow Automotive Connectors TAB HOUSING, 2,8MM 9POS. Conn Housing PL 9 POS 5mm Crimp ST Panel Mount Loose Piece Product Highlights:Tab HousingConnector Type = Junior Power TimerTab Fit = 2.79 x 0.81 mmNumber of Positions = 9Housing Color = YellowSearch Keywords:MCON, MCON1.2, Multiple Contact Point (MCP), MCP. LeavySeal, LevySeal, HDSCS HOUSING, 2, 8MM, 9WAY MCP2.89waytabhousing,keyA,yellow TE Connectivity Timer 系列 3行 9路 黄色 公 连接器 TAB HOUSING, 2,8MM,9POS. |
| 分类 |
商业参数
| 产品 | Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 量程（°/s） | :- | ||
机械参数
| 颜色 | Yellow | 深度 | 23.5mm |
| 间距 | 5 mm | 宽度 | 21mm |
| 高度 | 28mm | 重量 | 0.004 |
| 包装方式 | Bulk | 插片宽度 | 2.79 x 0.81 [.110 x .032] |
| 导线线规 | 13 AWG | 排间距 | 0.217" (5.51mm) |
| 触头类型 | Tab | 引脚间距 | :5mm |
| 外壳颜色 | Yellow | 安装类型 | Straight |
| 连接器类型 | Junior Power Timer | 接触镀层 | Tin |
| 排数 | 3 | 触头材料 | Copper Alloy |
| 壳体材料 | PA 6.6 GF 13% | 总长度 | 5.00 [0.197] |
| 主要材料 | Connector | 连接器颜色 | Yellow |
| 触点数 | 9 | 接触件端接 | Crimp |
| 位数 | 9 | ||
产品信息
| 备注 | With Secondary Locking | 类型 | Housing |
| 连接器性别 | PL | 系列 | MCP |
| 制造商全称 | MCP2.8Series | 产品子类型 | Tab Housing |
