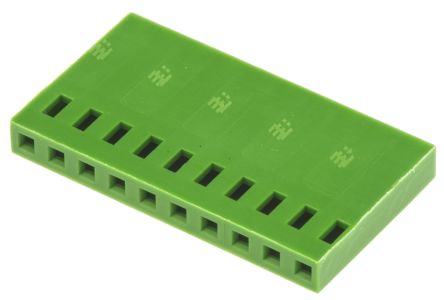

点击放大查看
1-925366-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount AMPMODU Mod IV, V MOD 4 REC.HSG 1X10P 10way 1row unshrouded crimp socket shell Headers & Wire Housings 1X10 POS RECPT W/O STRAIN RELIEF Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE, 10WAY 10WSOCKETSHELL Crimp housing Pitch2.54 mm Poles 10 Single row / straight / without strain relief AMPMODU MOD IV, 1-925366-0, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 10 路 直 母 PCB 壳体 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94-HB | ||
电气参数
| 量程（°/s） | :TE - AMPMODU Mod IV Series | 额定电压 | :250V |
| 工作电压 | :250V | 最大额定电流 | :3A |
机械参数
| 颜色 | Green | 深度 | 14.2mm |
| 间距 | 2.54 mm | 宽度 | 2.94mm |
| 长度 | 25.4mm | 重量 | 0.001 |
| 包装方式 | Bulk | 出线方向 | Without |
| 排间距 | 2.54 mm | 端接方式 | :Crimp |
| 触头类型 | Socket | 第二连接器 | Without |
| 外壳颜色 | Green | 安装类型 | Straight |
| 连接器类型 | Housing | 接触镀层 | :- |
| 排数 | 1 | 连接器样式 | Receptacle |
| 触头材料 | :- | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 10 | 接触件端接 | Crimp |
| 位数 | 10 | 排距 - 配合 | 2.54 |
| 中心触点表面处理 | 2.54 | 配接堆叠高度 | Without |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mod IV |
| 编码、键控 | No | 制造商全称 | AMP |
| 产品子类型 | Connector | ||
