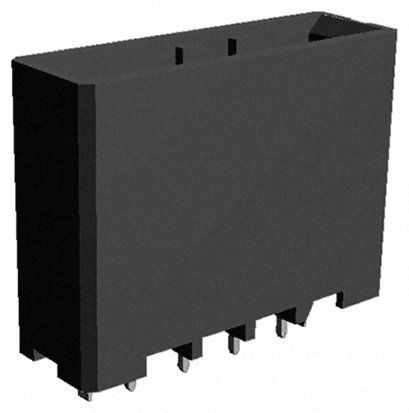

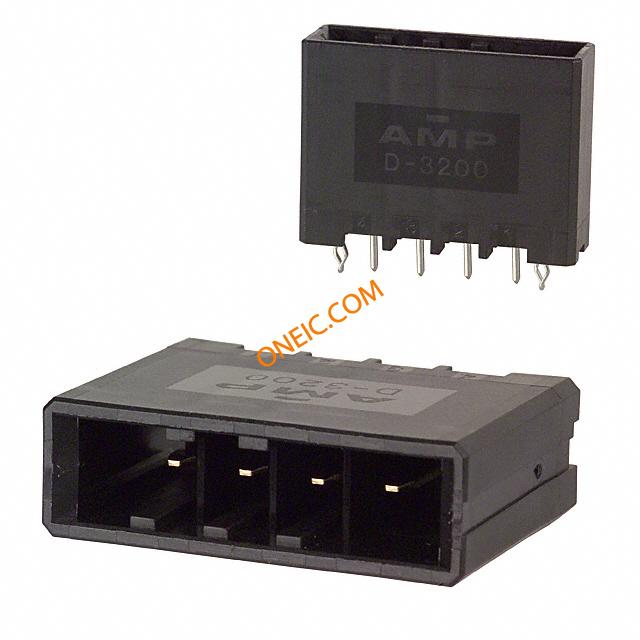

1-917338-2
| 制造商 | |
| 描述 | Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 4POS VERT KEY-X 15GOLD D-3000 4 Male Straight Heavy Duty Power Connector, Through Hole,600V ac Headers & Wire Housings 4 POS HDR VERT 15 AU KEY X Dynamic Series Connectors Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 4Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONNECTOR, HEADER, D-3200S, 4WAY Headervert4wayTAB5.08mmXkeyD-3 TE Connectivity Dynamic 3000 系列 5.08mm节距 4路 直 PCB 针座, 焊接端接 , 通孔 DYNAMIC 3200 VERTI. HDR ASY 4P |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | A29693 | 标准包装规格 | 17 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 17 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V ac | 额定交流电压 | 600 |
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 5.08 [.200] | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold (15) | 安装样式 | Thru Hole |
| 排数 | 1 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 包装数量 | Tube |
| 主要材料 | Power | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 端接表面处理 | Gold over Nickel | 接触件端接 | :Through Hole Vertical |
| 位数 | 4 | 接触镀层厚度 | 15µin (0.38µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 备注 | Solder tine section is 1.0 sq. | 类型 | Power |
| 连接器性别 | HDR | 系列 | D-3200S |
| 产品特性 | Board Lock, Polarizing Key | 钥匙类型 | X |
| CAD图纸 | 3D CAD Model | 编码、键控 | Yes |
| 制造商全称 | D-3000Series | 产品子类型 | Header |
| 连接类型 | Printed Circuit Board | 加载位置数 | All |
