点击放大查看

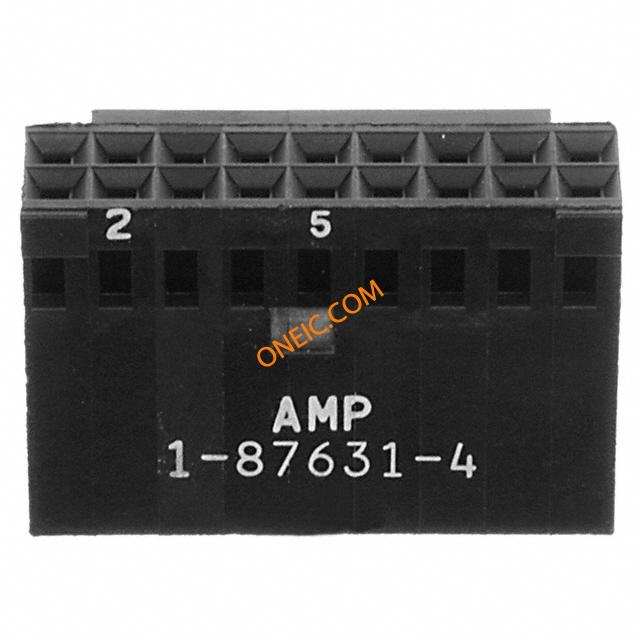

1-87631-4

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 POL DUAL Headers & Wire Housings 18 P HOUSING Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 MODIV HSG DR MKRD .100 POL
分类	集成电路通用IC存储器控制器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Not applicable / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	是

电气参数

额定电压	250 V	开关功能	Detent Latching
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3 A	最小供电电压	250VAC
连接器类型 - 电压输入	Crimp	保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	高度	3.14 mm [ .24 in ]
长度	22.86 mm [ .9 in ]	锁定类型	锁闩
包装方式	Bulk	壳体颜色	黑色
导线线规	20-30 AWG	排间距	0.100" (2.54mm)
触点形式	Female Socket	触头类型	Female Socket
引脚间距	0.100" (2.54mm)	外壳颜色	Black
安装类型	Straight	连接器类型	Receptacle
紧固类型	Locking Ramp	排数	2
插入件材料	铍铜	触头材料	Phosphor Bronze
壳体材料	Nylon	总长度	22.86 mm
包装数量	1	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	18
接触件端接	Crimp	位数	18
兼容外壳尺寸（如TM-700等）	公端	安装孔直径	带有
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品子类型	Receptacles / Sockets - Housings	抽头/步进数	1
其他规格	是	输出配置	Free Hanging (In-Line)
应用细节	Board to Board

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

TE.Connect?C=1&PN=1-87631-4&M=BYPN&LG=1&I=13

在线文档

1-87631-4?RQPN=1-87631-4

相关型号

103166-7

te connectivity / amp

Conn Shrouded Header HDR 18 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 18POS 30AU Headers & Wire Housings SHROUDED RA DUAL 18 detent windows .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 18Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRRA SHRD .100CL

¥24.4120

详情

104353-9

te connectivity / amp

Conn Unshrouded Header HDR 18 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 18POS R/A DUAL Headers & Wire Housings 18 MODII HDR DRRA B/A W/HLDWN 18 MODII HDR DRRA B/A W/HLDWN 18 MODII HDR DRRA B/A W/HLDWN Search Keywords:board to board, AMPMODU, pcb connectors,

¥6.5960

详情

104350-9

te connectivity / amp

Conn Unshrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 18POS DUAL 30AU

详情

103169-7

te connectivity / amp

Conn Shrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 18POS 30AU Headers & Wire Housings 18 MODII HDR DRST SHRD .100CL .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 18Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRST SHRD .100CL

¥9.8600

详情

104352-9

te connectivity / amp

Conn Unshrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 18POS DUAL TIN

详情

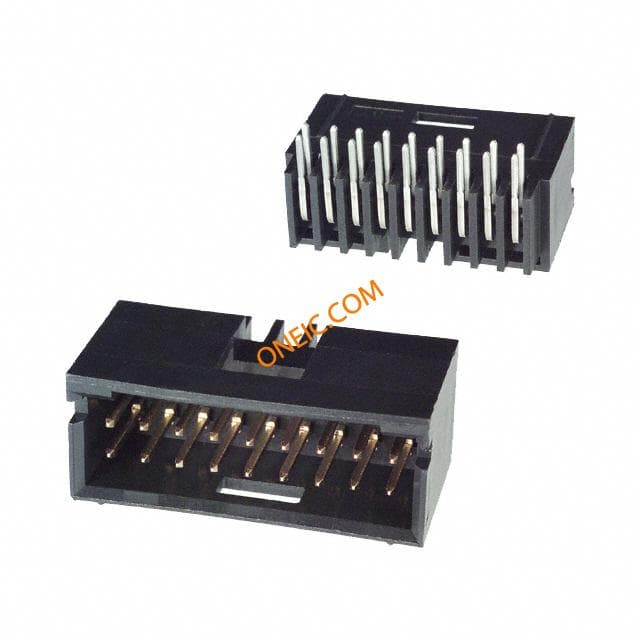

5-103166-7

te connectivity / amp

Conn Shrouded Header HDR 18 POS 2.54mm Solder RA Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER R/A .100 18POS 30AU Headers & Wire Housings SHROUDED RA DUAL 18 detent windows .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 18Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRRA SHRD LF

¥17.2720

详情

88189-4

te connectivity / amp

Conn Housing PL 18 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN PLUG 18POS HSG W/DETENT 018 HOUSING FFC PIN DR 100CL 018 HOUSING FFC PIN DR 100CL Search Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector

¥30.1791

详情

146130-8

te connectivity / amp

Conn Unshrouded Header HDR 18 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 18POS DUAL SMD Headers & Wire Housings 18 MODII HDR DRST SFMNT B/A Conn Unshrouded Header HDR 18 POS 2.54mm Solder ST SMD Search Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRST SFMNT B/A

¥5.5080

详情

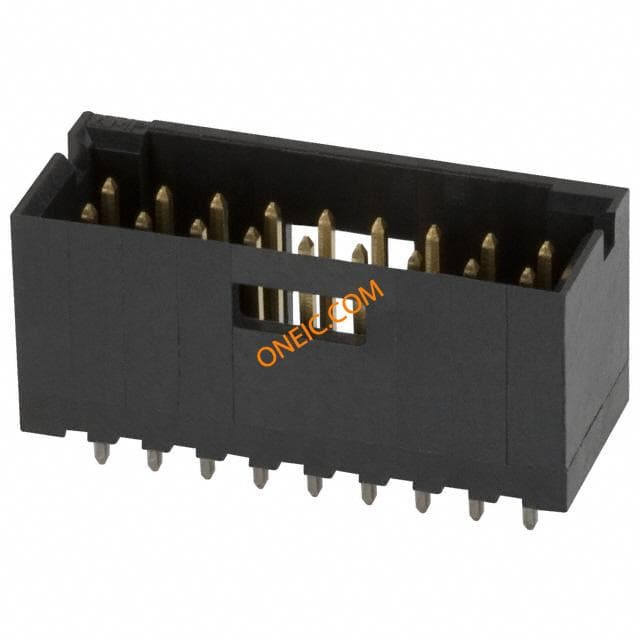

5-103168-7
