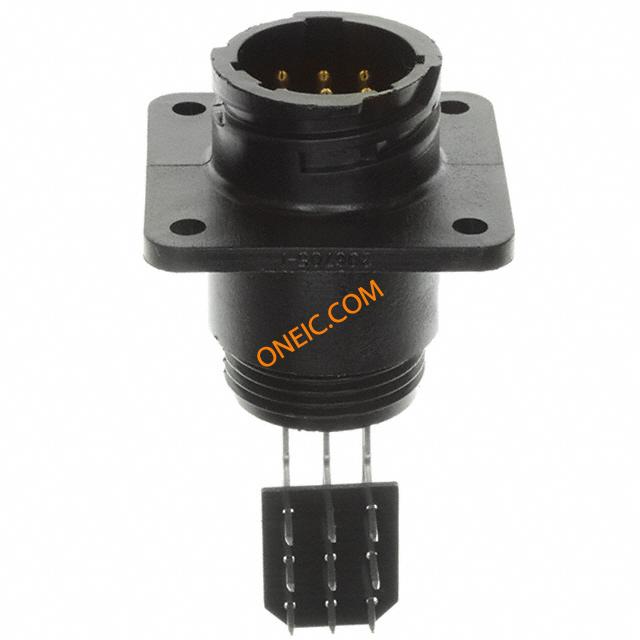

1-796375-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 9 POS Solder RA Thru-Hole 9 Terminal 1 Port Standard Circular Connector CPC PSTD RCPT 13-9 R/A LF CPC Connectors CONN RCPT CPC 9POS R/A GOLD Conn CPC PIN 9 POS Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9ReceptaclePinNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PSTD RCPT,13-9,R/A LF |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 合规性 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600VAC/DC | 防溅等级 | 无 |
| 通道数量 | 9 | 最大额定电流 | 13A |
机械参数
| 密封型 | No | 外形尺寸(长x宽) | 13 |
| 包装方式 | Tray | 外壳尺寸 | 13 |
| 方向 | A | 外壳样式 | Receptacle |
| 端接方式 | Solder | 螺纹尺寸 | 3/4 - 20 UNEF-2A |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 插针或插孔 | Pin | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Tin over Copper | 紧固类型 | Threaded |
| 安装样式 | Panel | 引脚数 | 0 |
| 连接器样式 | Receptacle | 壳体材料 | Thermoplastic |
| 总长度 | 2.03 | 包装数量 | 16 |
| 面板安装类型 | 带有 | 端接样式 | Solder Tail |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 9 | 端接表面处理 | Tin |
| 位数 | 9 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 3.18 [.125] | 外壳材料及表面处理 | Thermoplastic |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | Panel |
| 第二连接器安装特性 | Standard | ||
产品信息
| 连接器性别 | Standard | 系列 | CPC |
| 预加载 | No | 产品子类型 | Connectors |
| 其他规格 | Without | ||
环境参数
| 工作温度 | -40°C ~ 105°C | ||
文档与媒体
相关型号
