1-794617-2

点击放大查看

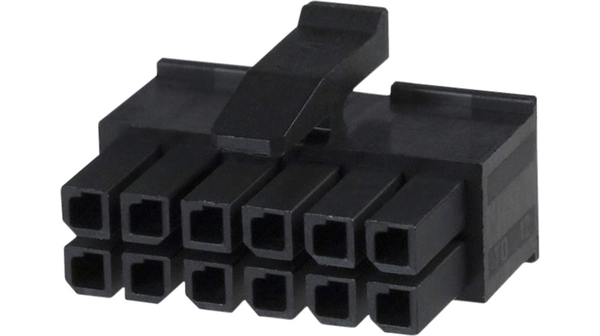

1-794617-2

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 12 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 12POS DL MATE-N-L 12 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 12P Conn Housing RCP 12 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 12Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 12 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;12;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 12 MATE-N-LOK Micro, 1-794617-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 12 路 直 母 连接器外壳 12POS,MICRO MNL,RCPT HSG
分类
连接器解决方案矩形连接器FPC/FFC矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free process认证机构:CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250 V工作电压:250V
最大额定电流5 A最小供电电压250VAC

机械参数

颜色Black深度14.04mm
间距3 mm宽度11.7mm
高度11.7 mm长度19mm
重量0.001材料（通用）:Nylon
包装方式Bulk导线线规20 AWG
排间距0.118" (3.00mm)触头类型Female Socket
外壳颜色Black安装类型Straight
连接器类型Receptacle紧固类型Latch Lock
安装样式Wire排数2
封装形式Receptacle触头材料Phosphor Bronze
壳体材料Nylon总长度3.00 [0.118]
端接样式Crimp第一触头极性Socket (Female)
连接器颜色:Black触点数12
接触件端接Crimp位数12

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列MATE-N-LOK
CAD图纸3D CAD Model产品子类型Housing
适用产品/相关产品Centerline Soft Shell Pin & Socket Connector

环境参数

工作温度-40C to 105C

文档与媒体

PDF 文档
1650928.pdf
在线文档
1-794617-2?RQPN=1-794617-2
