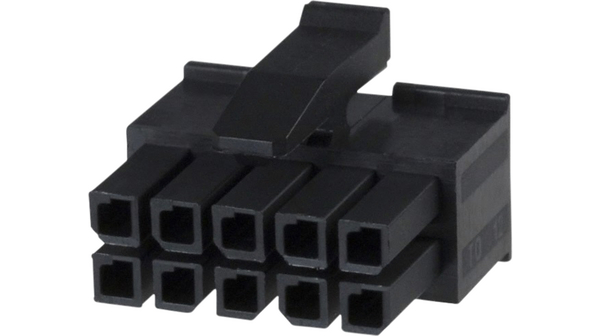

1-794617-0

点击放大查看

1-794617-0

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 10 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 10POS DL MATE-N-L 10 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 10P Conn Housing RCP 10 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 10Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector RECEPTACLE, DUAL ROW, 10WAY Connector,SoftShell;Nylon;Receptacle;Black;10;Dual;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 2 x 10 MATE-N-LOK Micro, 1-794617-0, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 10 路 直 母 连接器外壳 10POS,MICRO MNL,RCPT HSG
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free process认证机构:CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250 V接触电阻:20mohm
击穿电压:1500V最大额定电流5 A
绝缘电阻:1000Mohm

机械参数

颜色Black深度14.04mm
间距3 mm宽度11.7mm
长度16mm重量0.001
材料（通用）:Nylon包装方式Bulk
导线线规20 AWG排间距0.118" (3.00mm)
触头类型Female Socket外壳颜色Black
安装类型Straight连接器类型Receptacle
紧固类型Latch Lock安装样式Wire
排数2封装形式Receptacle
触头材料Phosphor Bronze壳体材料Nylon
总长度3.00 [0.118]端接样式Crimp
第一触头极性Socket (Female)连接器颜色:Black
触点数10接触件端接Crimp
位数10第一连接器安装类型:Socket

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列MATE-N-LOK
CAD图纸3D CAD Model产品子类型Housing
适用产品/相关产品Centerline Soft Shell Pin & Socket Connector

环境参数

工作温度:+105°C

文档与媒体

PDF 文档
1789428.pdf
PDF 文档
1650928.pdf

相关型号

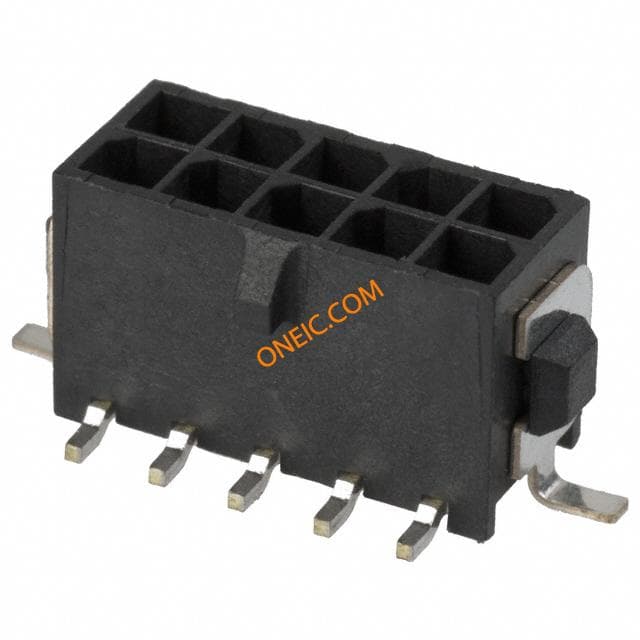

4-794638-0

4-794638-0

te connectivity / amp

Conn Power HDR 10 POS 3mm Solder ST SMD 10 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 10POS DUAL GOLD SMD Power to the Board HDR ASSY 10 POS 30AU VERT SMT 4-794638-0 Conn Power HDR 10 POS 3mm Solder ST SMD 10 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 10Number of Rows = DualVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector CONNECTOR, HEADER, SMT, 3MM, 10WAY 10P MICRO MNL ASSY,VRT,SMT,LF

¥9.0600
详情
1-794626-0

1-794626-0

te connectivity / amp

Conn Power HDR 10 POS 3mm Solder RA SMD 10 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADR 10POS DL R/A 30AU SMD Pin & Socket Connectors HDR PIN 2X05C R/A V0 BLK SMT 10POS MICRO MNL ASSY,R/A,SMT 10POS MICRO MNL ASSY,R/A,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥11.0840
详情

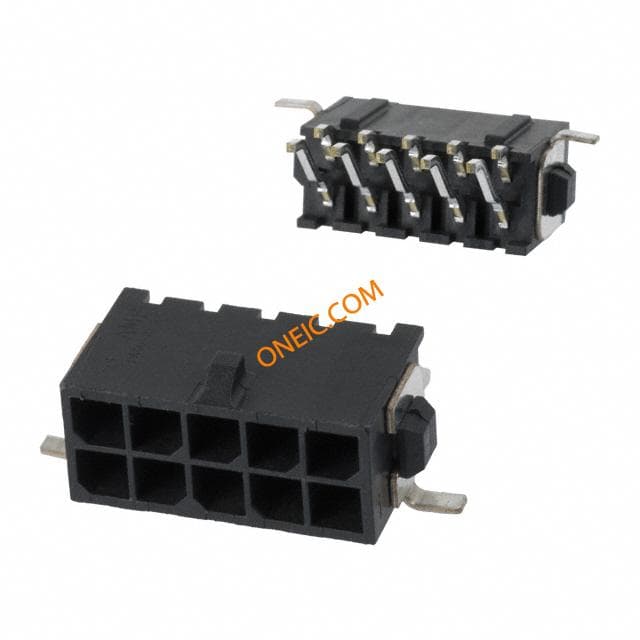

4-794627-0
