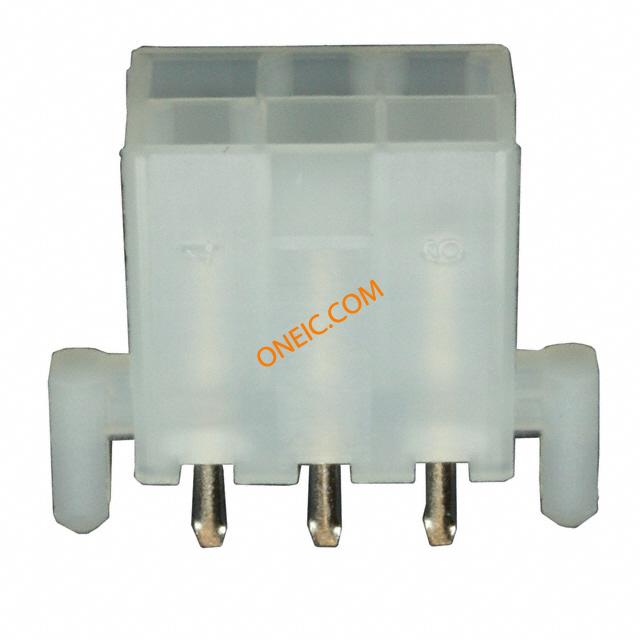

1-794304-1

制造商	TE Connectivity Ltd.
描述	ピン & ソケットコネクタ 6P AMPDUAC PWR VERT 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER VERT 6POS TIN PCB Pin & Socket Connectors 6P AMPDUAC PWR VERT 06P DUAC PWR CONN ASSY VRT LF 06P DUAC PWR CONN ASSY VRT LF Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	17943041	标准包装规格	168
产品类别	Pin & Socket Connectors	标准包装数量	168
工厂包装数量	2520

合规参数

RoHS

RoHS Compliant

机械参数

颜色	Natural	间距	0.165" (4.20mm)
包装方式	Bulk	排间距	0.165" (4.20mm)
端接方式	Solder	触头类型	Male Pin
安装类型	Through Hole	连接器类型	Header, Shrouded
接触镀层	Tin	紧固类型	Locking Ramp
排数	2	位数	6
接触镀层厚度	118.1µin (3.00µm)

产品信息

产品特性	Board Lock	产品子类型	Receptacle Housings
加载位置数	All

相关型号

106527-6

te connectivity / amp

Conn Housing RCP 6 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 6 POS W/POSTIVE LOCK Headers & Wire Housings DUAC Conn Housing RCP 6 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 6UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power DUACHousing;6PositionReceptacle 06P DUAC REC HSG

¥1.4620

详情
