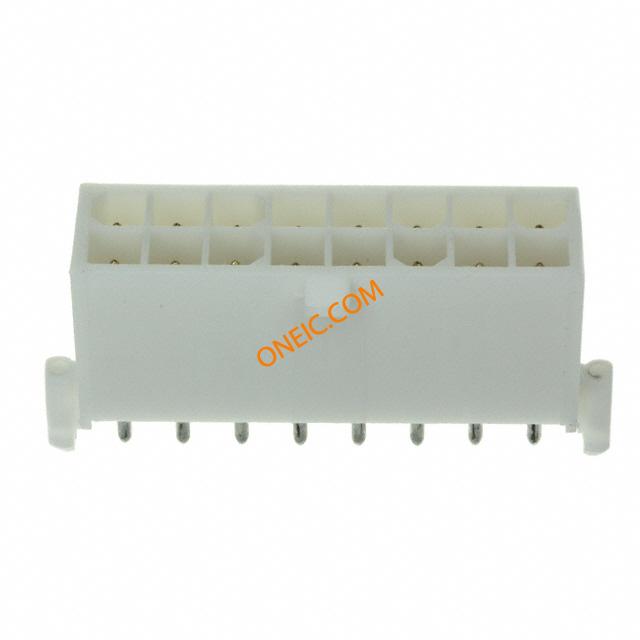

1-794075-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 16POS VERT .163 GOLD Headers & Wire Housings HEADER 16 POS GOLD DUAL ROW Conn Power HDR 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 16P MINI UMNL HDR W/O DH AU LF |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA分类 | 已认证 |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 开关功能 | Latched |
| 供电电压 | 600 | 最大额定电流 | 9.5 A |
机械参数
| 颜色 | White | 间距 | 4.14 mm |
| 宽度 | 9.83 | 长度 | 39.83 |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 白色 | 排间距 | 0.163" (4.14mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 安装样式 | 带有 | 引脚数 | 16 |
| 排数 | 2 | 高度（英寸） | 13.49 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 安装特性 | 板锁 | 包装数量 | 200 |
| 面板安装类型 | 通孔 - 焊接 | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 16 |
| 位数 | 16 | 外壳尺寸-插件 | 插头 |
| 兼容外壳尺寸（如TM-700等） | 插头护套 | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 端子柱长度 | 3.69 mm [ .145 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Mini Universal Mate-N-Lok | 产品特性 | Board Lock |
| 产品子类型 | Headers | 应用细节 | Power |
| 装配配置 | Without | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -20 – 105 °C [ -4 – 221 °F ] |
| 封装热阻 | .062 mm [ 1.57 in ] | ||
