1-770971-1

点击放大查看

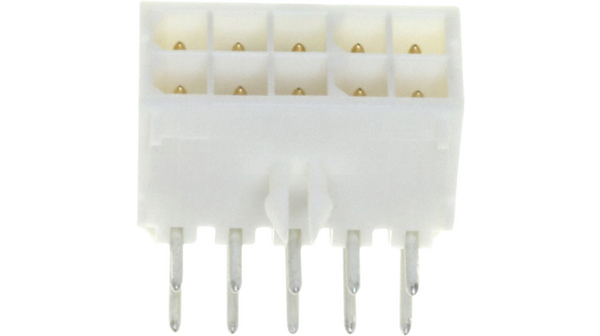

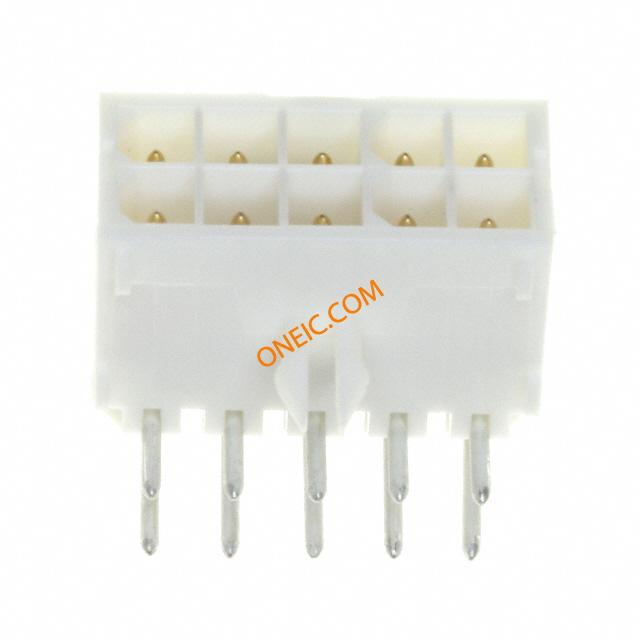

1-770971-1

制造商
TE Connectivity Ltd.
描述Conn Power HDR 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 10POS R/A DUAL .163 AU Headers & Wire Housings HEADER 10 POS R/A GOLD DUAL ROW Conn Power HDR 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,10PMINIUMNLR/AHDRASSYLF Pin header Pitch4.14 mm Poles 2 x 5 90° MATE-N-LOK Mini Universal, 1-770971-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 9.5A , 通孔 10P MINI UMNL R/A HDR ASSY LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名MATE-N-LOK零件号别名1770971-1
产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA分类已认证
UL阻燃等级UL 94V-0认证机构标志是
材料阻燃等级UL 94 V-0

电气参数

额定电压600 V极数2 x 5
开关功能Latched供电电压600
最大额定电流9.5 A最小供电电压600VAC

机械参数

颜色White间距4.14 mm
宽度12.7高度11.86 mm
长度22.28密封型Not Sealed
包装方式Bulk壳体颜色白色
方向直角排间距0.163" (4.14mm)
端接方式Solder触头类型Male Pin
安装类型Through Hole连接器类型Header, Shrouded
接触镀层Gold紧固类型Locking Ramp
安装样式Through Hole引脚数10
排数2连接器样式90°
高度（英寸）11.86触头材料Brass
壳体材料Nylon总长度22.8 mm
安装特性板锁包装数量200
面板安装类型通孔 - 焊接主要材料InterconnectSystem
端接排数焊接端接样式Through Hole
第一触头极性Pin (Male)触点数10
绝缘直径3.2 mm [ 3.2 in ]位数10
外壳尺寸-插件母端, 母端第一连接器极性Male
兼容外壳尺寸（如TM-700等）插头护套安装孔直径带有
接触件表面处理 - 配合锡铅端子柱长度3.69 mm [ .145 in ]
接触镀层厚度30µin (0.76µm)静电放电屏蔽不带

产品信息

类型Power连接器性别HDR
系列Mini Universal Mate-N-Lok覆盖范围覆盖
产品特性Board Lock制造商全称MATE-N-LOK
产品子类型Headers端口数1 Port
连接方式Wire-Board应用细节Power
装配配置Without加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55...+105 °C
封装热阻.062 mm [ 1.57 in ]

文档与媒体

在线文档
TE.Connect?C=1&M=BYPN&TCPN=1-770971-1&RQPN=1-770971-1
在线文档
1-770971-1?RQPN=1-770971-1
